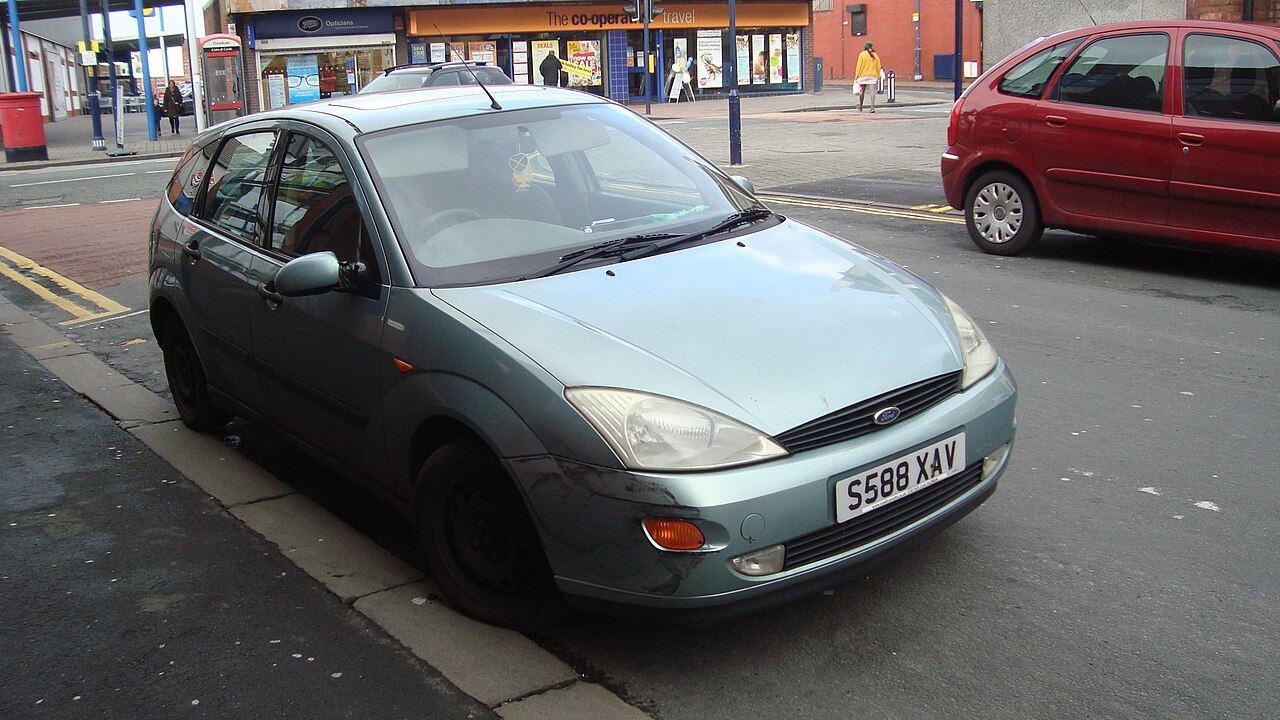

Ford Focus Mk1 (C170) was sold in Europe from 1998, and during its production run the engines, equipment and parts of the electrical system changed. The two most important fuse locations are the central fuse box inside the passenger compartment and the power distribution box in the engine bay. The tables below primarily cover European-market cars from 1998-2005; vehicles built for the United States and Canada may use different fuse ratings and assignments.
Contents
Where are the fuses in the Ford Focus Mk1?
The central fuse box is located on the driver’s side, in the lower part of the dashboard. Depending on the version, access is gained by lowering or removing the trim panel. The second fuse box is under the hood, on the left-hand side of the engine compartment. Always compare the numbering on the cover of your own vehicle with the tables below, because Ford used different assignments depending on model year, engine and market.
Passenger compartment fuse box – Europe
On European Focus Mk1 models, the passenger compartment fuse box mainly uses positions 30-63. Fuse 63 is mounted on the rear of the fuse panel. Equipment differences can change the assignment of individual positions, but the table below corresponds to the layout commonly found on European C170 models.
| No. | Rating | Protected circuit |
|---|---|---|
| 30 | 10 A | Lighting switch |
| 31 | 15 A | Radio |
| 32 | 15 A | Turn signals, GEM module |
| 33 | 20 A | Horn, power seat adjustment – depending on equipment |
| 34 | 20 A | Power sunroof |
| 35 | 7.5 A | Interior lighting, power mirror adjustment |
| 36 | 7.5 A | Electronic modules, instrument cluster |
| 37 | 25 A | Power windows / global closing – left side |
| 38 | 25 A | Power windows / global closing – right side |
| 39 | – | Not used in the standard European layout |
| 40 | 10 A | Reverse light |
| 41 | 7.5 A | Radio – accessory power supply |
| 42 | 15 A | Brake lights |
| 43 | 15 A | Power windows, rear window wiper – depending on version |
| 44 | 20 A | Front and rear fog lights |
| 45 | 7.5 A | Air conditioning, air recirculation |
| 46 | 7.5 A | ABS module |
| 47 | 15 A | Cigarette lighter / center power outlet |
| 48 | 10 A | Diagnostic connector |
| 49 | 25 A | Heated rear window |
| 50 | 7.5 A | Heated mirrors |
| 51 | – | Not used in the standard European layout |
| 52 | 15 A | Heated front seats |
| 53 | 10 A | Reverse light, heated washer jets |
| 54 | – | Not used in the standard European layout |
| 55 | 25 A | Front power windows |
| 56 | 20 A | Windshield wipers |
| 57 | 7.5 A | Parking lights – right side |
| 58 | 7.5 A | Parking lights – left side |
| 59 | 10 A | Lighting switch |
| 60 | 7.5 A | Airbag module |
| 61 | 7.5 A | Electronic modules, instrument cluster |
| 62 | 7.5 A | License plate lights |
| 63 | 20 A | Central locking – fuse located on the rear of the fuse box |
Passenger compartment relays
The passenger compartment relay panel may contain the functions listed below. The exact relay fitment depends on vehicle equipment.
| Relay | Function |
|---|---|
| R17 | Starter |
| R18 | Rear wiper – intermittent operation |
| R19 | Front wipers – intermittent operation |
| R20 | Version-dependent position / not used |
| R21 | Version-dependent position / not used |
| R22 | Version-dependent position / not used |
| R23 | Horn |
| R24 | Battery saver |
| R25 | Heated rear window and mirrors |
Engine compartment fuse box – Europe
The engine compartment fuse box supplies, among other systems, the main electrical circuits, engine management, ABS, headlights, cooling fans and air conditioning. On diesel models it also includes circuits for the glow plugs and auxiliary heating. Not every position is fitted on every engine version.
| No. | Rating | Protected circuit |
|---|---|---|
| 1 | 40 A | Main electrical system power supply |
| 2 | – | Not used in the standard European layout |
| 3 | 40 A | Second heating / glow plug circuit – diesel |
| 4 | 50 A | Heated windshield |
| 5 | 60 A | Glow plugs – diesel |
| 6 | 30 A | Engine cooling fan – vehicles with air conditioning |
| 7 | 40 A | Main electrical system power supply |
| 8 | 30 A | Ignition switch / starting circuit |
| 9 | 20 A | Engine management system |
| 10 | 1 A | Battery voltage sensor – some versions use a different arrangement |
| 11 | 30 A | ABS pump |
| 12 | 15 A | Fuel pump / diesel injection pump |
| 13 | 30 A | Headlight washers |
| 14 | 10 A | Daytime running / parking lights – depending on version |
| 15 | 10 A | Air-conditioning compressor clutch |
| 16 | 15 A | Left low-beam headlight |
| 17 | 15 A | Right low-beam headlight |
| 18 | 10 A | Heated oxygen sensor |
| 19 | – | Not used in the standard European layout |
| 20 | 10 A | Engine management system |
| 21 | 20 A | ABS valves |
| 22 | 20 A | Daytime running lights – versions with xenon headlights |
| 23 | 20 A | Fuel-fired auxiliary heater – diesel; on ST170 models it may also serve an alarm emergency-sounder circuit depending on version |
| 24 | 20-30 A | Glow plug circuit / ST170 subwoofer – rating and function depend on version |
| 25 | 15 A | Daytime running lights – conventional headlights |
| 26 | 10 A | Left high-beam headlight |
| 27 | 10 A | Right high-beam headlight |
| 28 | 10 A | Heated windshield / diesel auxiliary heating – depending on version |
| 29 | 30 A | Engine cooling fan – vehicles with air conditioning |
| 64 | 30 A | Heater blower motor |
| 65 | 30 A | Engine cooling fan |
Engine compartment relays
Relay assignment varies considerably with engine and equipment. The functions below correspond to a typical European C170 fuse box. Before replacing a relay, compare its position with the diagram on the cover of the specific vehicle.
| Relay | Typical function |
|---|---|
| R1 | Ignition |
| R2 | Glow plugs / secondary air pump – depending on engine |
| R3 | Heated windshield / cooling fan |
| R4 | Headlight washers |
| R5 | High-beam headlights |
| R6 | Low-beam headlights |
| R7 | Fuel pump |
| R8 | Main engine control relay / injection pump power supply |
| R9 | Cooling fan / preheating |
| R10 | Glow plugs / second cooling fan stage |
| R11 | Air conditioning |
| R12 | Daytime running lights |
| R13 | Fog lights / starter – depending on version |
| R14 | Xenon headlights |
| R15 | Cooling fan – high speed |
| R16 | Cooling fan – low speed |
Differences between model years, engines and markets
There is no single fuse assignment that covers every Focus Mk1 sold worldwide. European fuse boxes include circuits for diesel engines, the heated windshield, daytime running lights and xenon headlights, and the exact arrangement depends on equipment. Cars built for the United States and Canada use different ratings and functions in a number of positions – including some ABS, low-beam headlight, cooling fan, radio and power outlet circuits. A North American diagram should therefore not be treated as a direct replacement for the European layout.
For late-production cars and the ST170 in particular, compare the table with the fuse-box cover fitted to the vehicle. The fuse and relay assignments above are intended for the Ford Focus Mk1 C170 and should not be automatically applied to later Focus generations.
