The Citroen C8 after the 2012 facelift uses three main fuse groups: one below the dashboard, one in the battery compartment under the floor and one in the engine bay. The layout is similar to late pre-facelift cars but is not completely identical – among other changes, the engine compartment fuse box has an additional F15 position associated with central locking and the child-lock system.
The information below applies to the final C8 version produced after the second facelift, from 2012 to 2014. The term “Mk3” is sometimes used in online catalogues, but technically this was not a separate third C8 generation; it was another facelift of the same model.
For cars from the earlier period, see the separate Citroen C8 2008-2012 fuse guide, which also covers the electrical-system change introduced during 2008.
Contents
- Fuse box locations
- Dashboard fuse box
- Battery-compartment fuse box
- Engine compartment fuse box
- Key differences from the earlier C8
- MAXI fuses and relays
- FAQ
Fuse box locations
The dashboard fuse box is located behind the lower storage compartment on the right-hand side. Open the compartment and pull the cover handle to access the fuses.
The battery-compartment fuse box is located under the floor in front of the right front seat. It contains both standard comfort-equipment fuses and several high-current MAXI fuses.
The engine compartment fuse box is located to the left of the coolant reservoir. It mainly protects engine management, the fuel system, ABS/ESP, starter control, air conditioning, wipers and part of the central-locking system.
Dashboard fuse box

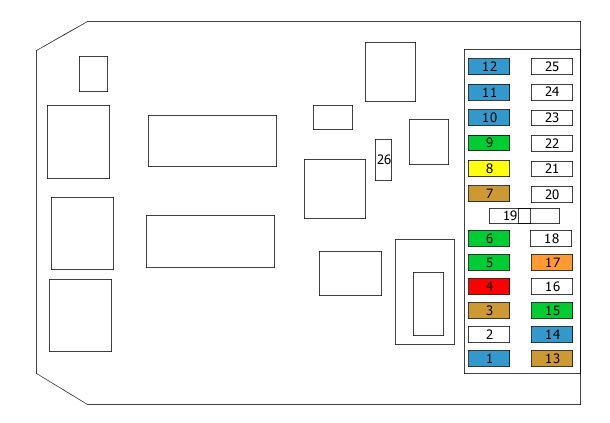

The large diagram below shows the fuse box itself without the rest of the owner’s manual page. The individual positions are clearly visible, making it easy to compare the drawing directly with the module in the vehicle.
| Fuse | Rating [A] | Function |
|---|---|---|
| F1 | 15 | Rear window wiper |
| F2 | – | Unused |
| F3 | 5 | Airbag control unit |
| F4 | 10 | Steering-angle sensor, diagnostic connector, ESP, manual air conditioning, clutch switch, headlight levelling, particulate-filter pump, electrochromic mirror |
| F5 | 30 | Power-adjustable mirrors, passenger-window motor, first-row opening roof |
| F6 | 30 | Front power-window supply |
| F7 | 5 | Interior, glove-box and vanity-mirror lighting, second-row multimedia screens |
| F8 | 20 | Multifunction display, alarm siren, audio system, CD changer, telephone, diesel fuel-additive control unit, tire-pressure monitoring, sliding-door control |
| F9 | 30 | Front cigarette lighter / front power socket |
| F10 | 15 | Steering-wheel controls, trailer wiring fuse box |
| F11 | 15 | Diagnostic connector, ignition switch, 4-speed automatic transmission |
| F12 | 15 | Driver’s seat memory, passenger electric seat, airbag control unit, parking sensors, sliding-door buttons, hands-free system, 6-speed automatic transmission |
| F13 | 5 | Engine fuse box, trailer wiring |
| F14 | 15 | Rain sensor, automatic climate control, instrument cluster, opening roofs, odometer module, audio-telematics system |
| F15 | 30 | Passenger-side door locking |
| F16 | 30 | Door locking and unlocking |
| F17 | 40 | Heated rear window |
F15 and F16 should be distinguished. In this electrical-system version they do not form one common circuit – F15 is assigned to passenger-side locking, while F16 handles general door lock/unlock control.
Battery-compartment fuse box

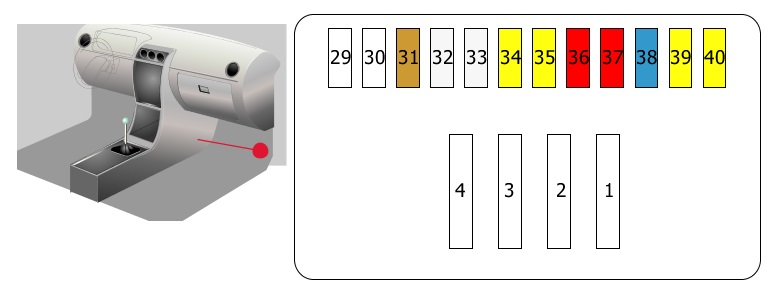

The fuse box is under the floor in front of the right front seat. Its characteristic arrangement of positions 1-4 and 31-40 makes it easy to distinguish from the older fuse box using positions F1-F12.
| Fuse | Rating [A] | Function |
|---|---|---|
| 1* | 40 | Electric sliding side doors |
| 2* | 40 | Electric sliding side doors |
| 3* | – | Unused |
| 4* | 40 | Trailer wiring fuse-box supply |
| 31 | 5 | Main brake-pedal switch |
| 32 | 25 | Driver’s seat-position memory |
| 33 | 25 | Passenger seat-position memory |
| 34 | 20 | Third-row opening roof |
| 35 | 20 | Second-row opening roof |
| 36 | 10 | Heated passenger seat |
| 37 | 10 | Heated driver’s seat |
| 38 | 15 | Unused in 2012-2014 documentation |
| 39 | 20 | Third-row 12 V accessory socket |
| 40 | 20 | Second-row 12 V accessory socket |
* Positions 1-4 are MAXI fuses. The manufacturer recommends against substituting these fuses casually or fitting a different amperage.
In older documentation from the 2008 transition period, position 38 may be assigned to xenon high-beam headlights. In the later C8 documentation it is marked unused. This is one reason not to apply the earlier C8 diagram automatically to a 2012-2014 vehicle.
Engine compartment fuse box

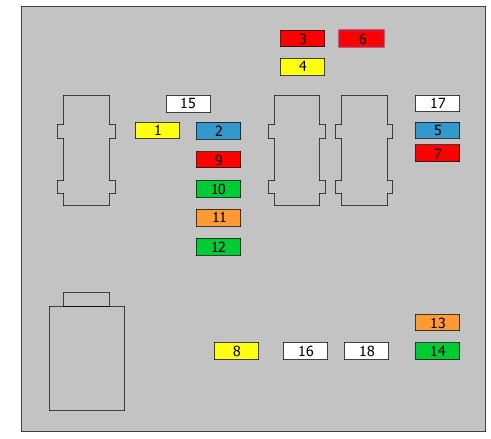

The diagram below shows the late fuse-box layout used in the C8. It is a drawing of the module itself, so the fuse numbers can be read without enlarging a full owner’s manual page.
| Fuse | Rating [A] | Function |
|---|---|---|
| F1 | 20 | Engine control unit, fuel and air-supply systems, fan assembly |
| F2 | 15 | Horn |
| F3 | 10 | Front and rear washer pump |
| F4 | 20 | Headlight washer pump |
| F5 | 15 | Fuel-supply system |
| F6 | 10 | Power steering, additional brake-pedal switch, automatic-transmission control unit, airflow meter, automatic xenon headlight levelling |
| F7 | 10 | ABS/ESP braking system |
| F8 | 20 | Starter control |
| F9 | 10 | Main brake-pedal switch |
| F10 | 30 | Fuel and air-supply systems, emissions-control system |
| F11 | 40 | Front air conditioning / blower |
| F12 | 30 | Windshield wipers |
| F13 | 40 | BSI module |
| F14 | 30 | Unused |
| F15 | 30 | Child-lock control and door locking, unlocking and deadlocking |
F14 is physically a 30 A fuse position, but its function is marked unused in the 2012-2014 C8 documentation. This is more precise than listing only a dash for F14.
F15 is another important difference compared with some earlier C8 documentation. In the late layout it is 30 A for child-lock and central-locking control.
Key differences from the earlier C8
The post-2012 facelift C8 retained the basic electrical architecture of late pre-facelift vehicles, but a similar fuse-box appearance alone is not enough when identifying a fuse.
- the dashboard fuse box has separate F15 and F16 30 A positions related to locking,
- in the battery fuse box, F38 15 A is unused in the late-version documentation,
- in the engine bay, F14 is rated at 30 A but marked unused,
- the engine fuse box has F15 30 A associated with the child-lock and central-locking system.
If the vehicle has different physical numbering from the diagrams above, return to the C8 2008-2012 diagrams and establish the actual electrical-system version.
A technical relative of the C8 is the Peugeot 807. Both belong to the same family of large PSA vans, but even when their modules look similar, fuse ratings should not be transferred between them without checking model year and configuration.
MAXI fuses and relays
The C8 owner’s manual separates ordinary user-checkable fuses from additional MAXI protection. MAXI fuses protect high-current circuits including the electric sliding doors and trailer wiring.
The manufacturer does not provide one complete universal C8 relay table in the standard owner’s manual. Full relay information and some BSM module circuits depend on engine, market and equipment. For this reason, we do not assign R1-R6 numbers to every 2012-2014 C8 without identifying the specific module.
FAQ – Citroen C8 2012-2014
Which fuse is for the front cigarette lighter?
The front cigarette lighter and power socket are protected by F9 30 A in the dashboard fuse box.
Which fuses are for the passenger 12 V sockets?
In the battery-compartment fuse box, 39 20 A protects the third-row 12 V outlet and 40 20 A protects the second-row outlet.
Which fuses are for the electric sliding doors?
The main protection for the electric sliding doors is provided by MAXI fuses 1 and 2 – 40 A each in the battery-compartment fuse box. The sliding-door control unit is also one of the consumers supplied through F8 in the dashboard fuse box.
Which fuse is for the starter?
Starter control is protected by F8 20 A in the engine compartment fuse box.
Which fuse is for the heated driver’s seat?
The heated driver’s seat is protected by 37 10 A in the battery-compartment fuse box. Position 36 10 A is for the heated passenger seat.
Which fuse is for the heated rear window?
The heated rear window is protected by F17 40 A in the dashboard fuse box.
What does F15 30 A in the engine compartment protect?
On the final C8 version, F15 30 A is assigned to child-lock control and the locking, unlocking and deadlocking functions of the central-locking system.
Is F14 under the hood an empty slot?
Do not treat it as an empty accessory position. In late C8 documentation, F14 is a 30 A position whose function is marked unused. Do not fit a different fuse rating or use this circuit for additional accessories.
