Ford Freestyle was produced from 2004 but entered the market as a 2005 model. For factory fuse information, the correct model-year range is therefore 2005-2007. The historical URL is retained unchanged.
The vehicle has two main fuse boxes: the Smart Junction Box in the cabin and the Power Distribution Box under the hood. Ford revised both boxes for 2006, so a 2005 vehicle should not be serviced using the 2006-2007 tables.
Freestyle shares much of its electrical architecture with the Ford Five Hundred, but the assignments are not fully interchangeable. Freestyle adds circuits for the rear wiper, rear climate control and hatchback-specific equipment.
Fuse-box locations
Smart Junction Box: below the dashboard to the left of the steering wheel. Power Distribution Box: in the engine compartment.

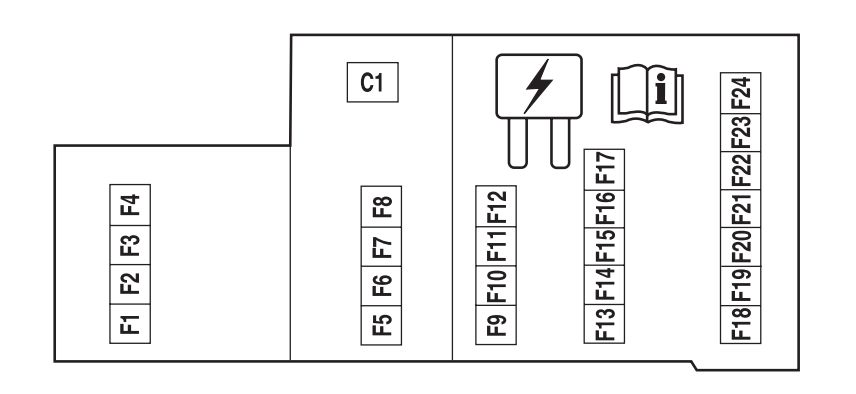

Ford Freestyle 2005 – passenger fuse panel
| Position | Rating [A] | Protected component / function |
|---|---|---|
| 1 | 15 | Adjustable pedals |
| 2 | 25 | Central locking, door-lock actuators, liftgate latch and solenoid |
| 3 | 15 | Interior lighting, delayed accessory power for windows and moonroof |
| 4 | 20 | High beams |
| 5 | 15 | Parking lamps, side marker lamps, trailer lighting |
| 6 | 7.5 | Keep Alive Memory: instrument cluster, PCM, climate control, analog clock |
| 7 | 20 | Subwoofer |
| 8 | 20 | Horns |
| 9 | 10 | Reversing lamps, electrochromic mirror, Reverse Sensing System, trailer wiring |
| 10 | 20 | Audio, Family Entertainment System |
| 11 | 7.5 | Mirrors, memory module |
| 12 | 20 | Cigarette lighter, data link connector |
| 13 | 30 | Heated rear window |
| 14 | 10 | Heated rear-window indicator, heated mirrors |
| 15 | 10 | Delayed accessory power: driver-window logic, rear climate control, moonroof, audio, driver-door-lock switch illumination |
| 16 | 7.5 | Starter-relay coil, PCM |
| 17 | 7.5 | Audio |
| 18 | 7.5 | Occupant Classification System, passenger-airbag deactivation |
| 19 | 7.5 | Wiper-relay coil, blower-relay coil, instrument-cluster logic |
| 20 | 7.5 | Rear climate-control relays, electrochromic mirror, compass module |
| 21 | 7.5 | Restraints Control Module |
| 22 | 7.5 | Instrument cluster, climate control |
| 23 | 10 | ABS, traction control, AWD module, reverse sensing, heated-seat modules |
| 24 | 10 | PCM relay coil, brake-shift interlock, PATS, fuel-pump relay, stop lamps, CHMSL |
| CB1 | 30 | Circuit breaker – passenger window, rear windows and switch illumination |

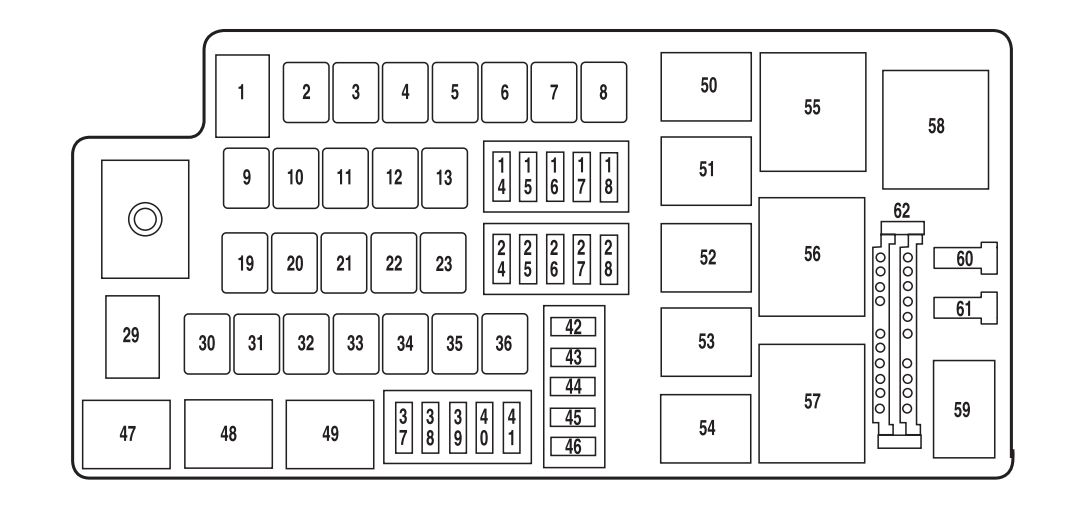

Ford Freestyle 2005 – Power Distribution Box
| Position | Rating [A] | Protected component / function |
|---|---|---|
| 1 | 80 | SJB supply – fuses 1, 2, 3, 4, 5, 8 and 12 |
| 2 | – | Not used |
| 3 | – | Not used |
| 4 | 50 | RUN/ACC wiper-relay supply and PDB circuits 37 and 38 |
| 5 | – | Not used |
| 6 | 20 | Moonroof |
| 7 | – | Not used |
| 8 | 60 | Engine cooling fan |
| 9 | – | Not used |
| 10 | 40 | ABS pump motor |
| 11 | 30 | Starter |
| 12 | 30 | PCM relay |
| 13 | 20 | ABS valves |
| 14 | – | Not used |
| 15 | 20 | Cargo-area power outlet |
| 16 | 15 | Traction-control module |
| 17 | 20 | Console power outlet |
| 18 | 10 | Alternator |
| 19 | 40 | SJB logic and solid-state supply |
| 20 | – | Not used |
| 21 | 40 | Heated rear window |
| 22 | 30 | Passenger power seat |
| 23 | 30 | Heated seats |
| 24 | 15 | Front fog lamps |
| 25 | 10 | A/C compressor clutch relay and clutch |
| 26 | – | Not used |
| 27 | – | Not used |
| 28 | 15 | Fuel-pump driver module, fuel pump |
| 29 | 80 | Main SJB supply – CB1 and fuses 6, 7, 9, 10, 11 and 15 |
| 30 | 30 | Driver-window motor |
| 31 | – | Not used |
| 32 | 30 | Rear climate-control blower motor |
| 33 | 30 | Driver power seat, memory module |
| 34 | 30 | Ignition switch – SJB supply |
| 35 | – | Not used |
| 36 | 40 | Front climate-control blower motor |
| 37 | 30 | Front wiper and washer |
| 38 | 5 | Heated PCV valve |
| 39 | 25 | Rear wiper and washer |
| 40 | 10 | TCM, EVMV, EVAP canister vent, ESM, oxygen-sensor heaters, A/C clutch |
| 41 | 15 | PCM, fuel injectors, ignition coils, MAF sensor |
| 42 | – | Not used |
| 43 | – | Not used |
| 44 | – | Not used |
| 45 | – | Not used |
| 46 | – | Not used |
| 47 | Relay | Not used |
| 48 | Relay | Front fog lamps |
| 49 | Relay | Not used |
| 50 | Relay | Auxiliary coolant pump |
| 51 | Relay | A/C clutch |
| 52 | Relay | Not used |
| 53 | Relay | Fuel-pump driver module, fuel pump |
| 54 | Relay | Not used |
| 55 | Relay | PCM, supply for PDB fuses 40 and 41 |
| 56 | Relay | Starter solenoid |
| 57 | Relay | Front climate-control blower motor |
| 58 | Relay | Wipers |
| 59 | Relay | Not used |
| 60 | Diode | PCM |
| 61 | Diode | PCM |
Ford Freestyle 2006-2007 – Smart Junction Box
Ford changed the passenger-compartment numbering for 2006. Do not transfer fuse numbers from the 2005 table simply because the physical panel looks similar.
| Position | Rating [A] | Protected component / function |
|---|---|---|
| F1 | 20 | High beams |
| F2 | 15 | Interior lighting, delayed accessory power for windows and moonroof |
| F3 | 25 | Central locking, door-lock actuators, liftgate latch and solenoid |
| F4 | 15 | Adjustable pedals |
| F5 | 20 | Horns |
| F6 | 20 | Subwoofer |
| F7 | 7.5 | Keep Alive Memory: instrument cluster, PCM, climate control, analog clock |
| F8 | 15 | Parking and marker lamps, trailer wiring |
| F9 | 20 | Cigarette lighter, data link connector |
| F10 | 7.5 | Mirrors, memory module |
| F11 | 20 | Audio, Family Entertainment System |
| F12 | 10 | Reversing lamps, electrochromic mirror, Reverse Sensing System, trailer wiring |
| F13 | 7.5 | Audio |
| F14 | 7.5 | Starter-relay coil, PCM |
| F15 | 10 | Delayed accessory power for driver window, rear climate control, moonroof and audio |
| F16 | 10 | Heated rear-window indicator, heated mirrors |
| F17 | 30 | Heated rear window |
| F18 | 10 | PCM coil, brake-shift interlock, PATS, fuel relay, stop lamps and CHMSL |
| F19 | 10 | ABS, traction control, AWD, reverse sensing, heated seats |
| F20 | 7.5 | Instrument cluster, climate control |
| F21 | 7.5 | Restraints Control Module |
| F22 | 7.5 | Rear climate-control relays, electrochromic mirror, compass |
| F23 | 7.5 | Wiper-relay coil, blower-relay coil, instrument-cluster logic |
| F24 | 7.5 | Occupant Classification System, passenger-airbag deactivation |
| C1 | 30 | Circuit breaker – passenger window, rear windows and switch illumination |

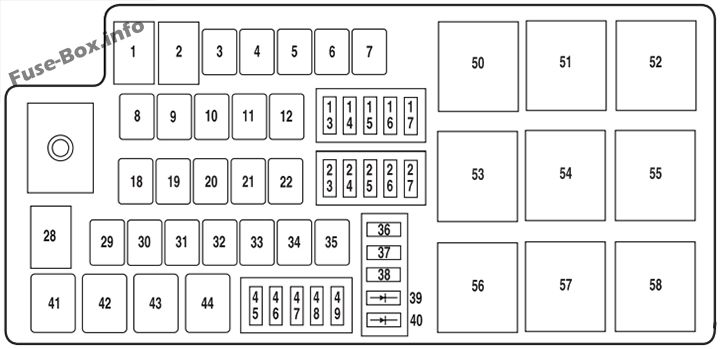

Ford Freestyle 2006-2007 – Power Distribution Box
| Position | Rating [A] | Protected component / function |
|---|---|---|
| 1 | 80 | SJB supply – F1, F2, F3, F4, F5, F8 and F12 |
| 2 | – | Not used |
| 3 | 50 | Front and rear wiper supply |
| 4 | – | Not used |
| 5 | 20 | Moonroof |
| 6 | – | Not used |
| 7 | 60 | Cooling fan |
| 8 | – | Not used |
| 9 | 40 | ABS pump motor |
| 10 | 30 | Starter |
| 11 | 30 | PCM relay |
| 12 | 20 | ABS valves |
| 13 | – | Not used |
| 14 | 20 | Cargo-area power outlet |
| 15 | 15 | Traction-control module |
| 16 | 20 | Console power outlet |
| 17 | 10 | Alternator |
| 18 | 40 | SJB logic and solid-state supply |
| 19 | – | Not used |
| 20 | 40 | Heated rear window |
| 21 | 30 | Passenger power seat |
| 22 | 30 | Heated seats |
| 23 | 15 | Front fog lamps |
| 24 | 10 | A/C relay and clutch |
| 25 | – | Not used |
| 26 | – | Not used |
| 27 | 15 | Fuel-pump driver module, fuel pump |
| 28 | 80 | Main SJB supply |
| 29 | 30 | Driver-window motor |
| 30 | – | Not used |
| 31 | 30 | Rear climate-control blower, auxiliary coolant pump |
| 32 | 30 | Driver power seat, memory module |
| 33 | 30 | Ignition switch – SJB supply |
| 34 | – | Not used |
| 35 | 40 | Front climate-control blower motor |
| 36 | 10 | Auxiliary coolant pump |
| 37 | – | Not used |
| 38 | – | Not used |
| 39 | Diode | PCM |
| 40 | Diode | A/C clutch |
| 41 | Relay | Front fog lamps |
| 42 | Relay | 2006: auxiliary coolant pump. 2007: not used |
| 43 | Relay | A/C clutch |
| 44 | Relay | Fuel-pump driver module, fuel pump |
| 45 | 30 | Front wiper, front washer |
| 46 | 5 | Heated PCV valve |
| 47 | 25 | Rear wiper, rear washer |
| 48 | 10 | TCM, EVMV, EVAP canister vent, ESM, oxygen-sensor heaters, A/C clutch |
| 49 | 15 | PCM, fuel injectors, ignition coils, MAF |
| 50 | Relay | PCM |
| 51 | Relay | Starter solenoid |
| 52 | Relay | 2006: front blower and auxiliary coolant-pump circuit. 2007: front blower |
| 53 | – | Not used |
| 54 | – | Not used |
| 55 | – | Not used |
| 56 | – | Not used |
| 57 | – | Not used |
| 58 | Relay | Wipers |
Cigarette lighter and 12 V outlets
| Position | Rating [A] | Protected component / function |
|---|---|---|
| 2005 | Cigarette lighter / DLC | 12 – 20 A in the cabin |
| 2005 | Cargo-area outlet | 15 – 20 A under the hood |
| 2005 | Console outlet | 17 – 20 A under the hood |
| 2006-2007 | Cigarette lighter / DLC | F9 – 20 A in the cabin |
| 2006-2007 | Cargo-area outlet | 14 – 20 A under the hood |
| 2006-2007 | Console outlet | 16 – 20 A under the hood |
Freestyle ended after model year 2007. Its direct successor was the Ford Taurus X, which has its own fuse assignments.
FAQ – Ford Freestyle fuses
Why are the 2005 and 2006-2007 tables separate?
Ford changed both the cabin fuse numbering and the under-hood power distribution box for 2006.
Where is the cigarette-lighter fuse?
In 2005 it is cabin position 12 – 20 A. In 2006-2007 it is F9 – 20 A.
Where is the fuel-pump fuse?
In 2005 the pump circuit is position 28 – 15 A under the hood. In 2006-2007 it moves to position 27 – 15 A.
Which fuses protect the rear and front wipers on 2006-2007 cars?
Position 45 – 30 A protects the front wiper/washer and position 47 – 25 A the rear wiper/washer.
