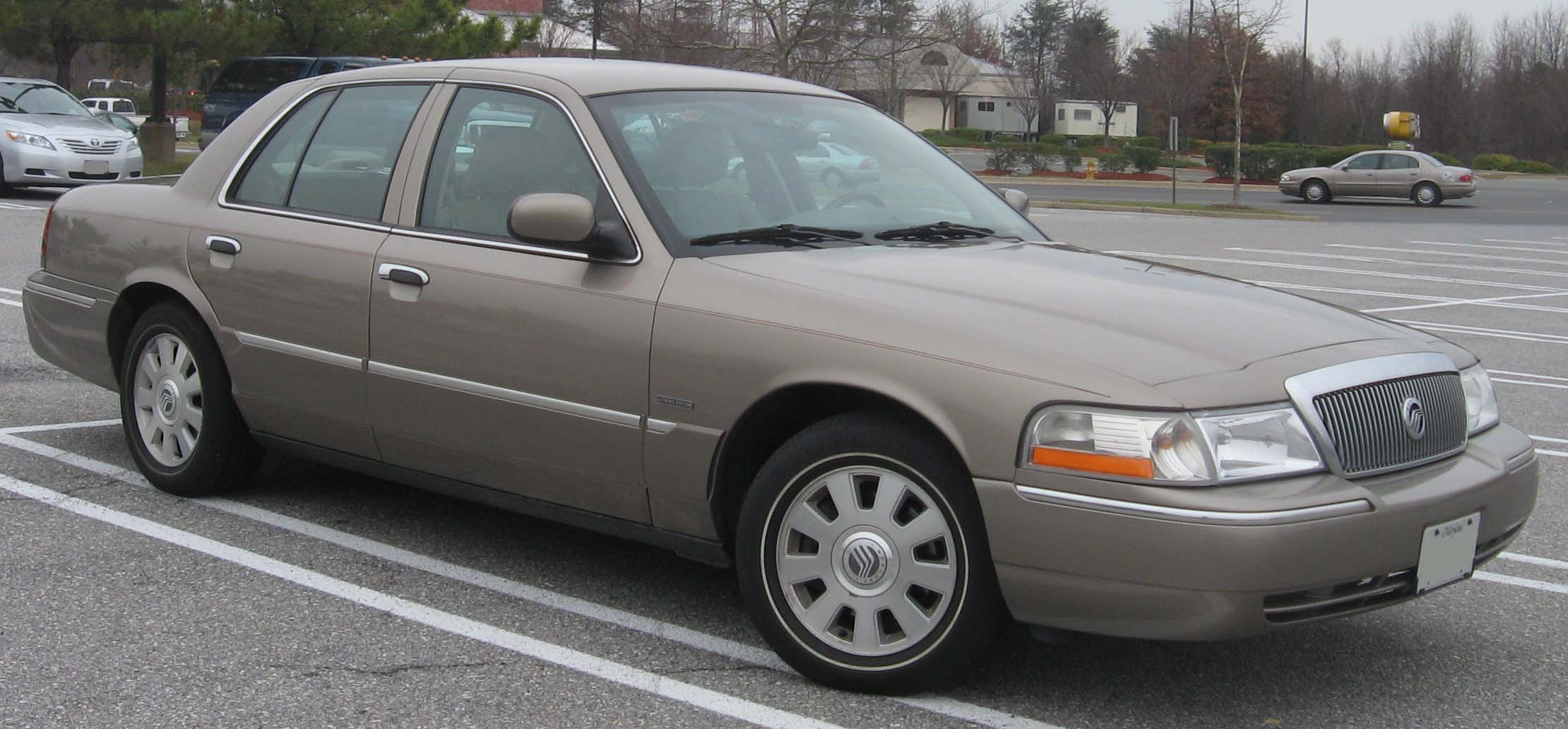

Mercury Grand Marquis 2003-2011 is the final Grand Marquis generation on Ford’s Panther platform. Its fuse assignments changed repeatedly during production, especially across the 2003-2004, 2005-2006 and 2007-2011 groups.
Because many fuse numbers were reused for different functions and ratings, every model-year variant is retained as a separate row. For the preceding generation, see Mercury Grand Marquis 1998-2002.
Engine-compartment power distribution box
| Position | Rating [A] | Protected component / function |
|---|---|---|
| 1 | 25 | 2003-2004: audio |
| 20 | 2005: ignition switch – key, RUN 1, RUN 2 | |
| 25 | 2006: ignition switch – RUN 1, RUN 2; hazard lamps | |
| 30 | 2007-2011: ignition switch | |
| 2 | 20 | 2003-2004: power point |
| 25 | 2005-2006: ignition switch – RUN/START, RUN/ACC, START | |
| 20 | 2007-2008: moonroof | |
| – | 2009-2011: not used | |
| 3 | 25 | 2003-2004: heated seats |
| 10 | 2005-2011: PCM keep-alive power; canister vent – 2007-2011 | |
| 4 | 15 | 2003-2004: horn |
| 20 | 2005-2011: fuel-pump relay feed | |
| 5 | 20 | 2003-2004: fuel pump |
| 10 | 2005-2011: Rear Air Suspension Module; Variable Assist Steering Module – 2005-2008 | |
| 6 | – | 2003: not used |
| 15 | 2004-2011: alternator regulator | |
| 7 | 25 | 2003-2004: moonroof |
| 30 | 2005-2011: PCM relay feed | |
| 8 | 20 | Driver Door Module, door locks – 2007-2008 |
| 9 | – | 2003-2004: not used |
| 15 | 2005-2011: ignition-coil relay feed | |
| 10 | – | 2003-2004: not used |
| 20 | 2005-2011: horn-relay feed | |
| 11 | 20 | 2003-2004: daytime running lamps |
| 15 | 2005-2011: A/C clutch-relay feed | |
| 12 | – | 2003-2004: not used |
| 25 | 2005-2006: audio | |
| 20 | 2007-2011: audio / subwoofer | |
| 13 | – | 2003-2004: not used |
| 20 | 2005-2011: instrument-panel power point | |
| 14 | – | 2003-2004: not used |
| 20 | 2005-2011: stop-lamp switch | |
| 15 | – | 2003-2004: not used |
| 20 | 2005-2006: heated seats | |
| 15 | 2007-2011: fog lamps | |
| 16 | – | 2003-2004: not used |
| 20 | 2005: Daytime Running Lamps module | |
| 15 | 2006: fog lamps | |
| 20 | 2007-2011: heated seats | |
| 17 | – | Not used |
| 18 | – | Not used |
| 19 | 15 | PCM – 2003-2004, fuel injectors |
| 20 | 15 | PCM and HEGO sensors – 2003-2004; MAF sensor – 2005-2006; IAT sensor – 2006 |
| 21 | – | 2003-2004: not used |
| 15 | 2005-2011: powertrain loads and sensors | |
| 22 | – | Not used |
| 23 | – | Not used |
| 24 | – | 2003-2004: not used |
| 5 | 2005: radio mute | |
| – | 2006: radio mute | |
| 10 | 2005-2011: heated mirrors, rear-defrost indicator | |
| 101 | 30 | 2003-2004: ignition switch, starter-relay feed, I/P fuses 7, 9, 12 and 14 |
| 40 | 2005-2011: blower-relay feed | |
| 102 | 50 | Cooling fan |
| 103 | 40 | 2003-2004: blower motor |
| 50 | 2005-2006: I/P fuse-box feed 1 – fuses 19 in 2004, 23, 25, 27 and 31 | |
| 50 | 2007-2011: I/P fuse-box feed 1 – fuses 10, 12, 14, 16 and 18 | |
| 104 | 40 | 2003-2004: heated rear-window relay |
| 40 | 2005-2006: I/P fuse-box feed 2 – fuses 1, 3, 5, 7 and 9 | |
| 50 | 2007-2011: I/P fuse-box feed 2 – fuses 2, 4, 6, 8, 19, 21, 23 and 25 | |
| 105 | 30 | 2003: PCM power relay |
| 30 | 2004: PCM power relay, diagnostic connector, PDB fuses 19 and 20, A/C clutch relay, fuel-pump module relay | |
| 30 | 2005-2011: starter-relay feed | |
| 106 | 40 | Anti-lock Brake System |
| 107 | – | 2003-2004: not used |
| 40 | 2005-2011: rear-window defrost relay | |
| 108 | – | 2003-2004: not used |
| 20 | 2005-2006: moonroof | |
| – | 2007-2008: not used | |
| 20 | 2009-2011: cigarette lighter | |
| 109 | – | 2003-2004: not used |
| 20 | 2005-2011: Anti-lock Brake System | |
| 110 | – | 2003-2004: not used |
| 30 | 2005-2011: wiper module | |
| 111 | – | Not used |
| 112 | 50 | 2003: ignition switch |
| 50 | 2004: ignition switch feed to I/P fuses 4, 6, 8, 11, 13, 15, 17, 20, 22 and 28 | |
| 30 | 2005-2011: air-suspension compressor | |
| 113 | 50 | 2003-2004: feeds I/P fuses 3, 5, 21, 23, 25 and 27 |
| – | 2005-2011: not used | |
| 114 | 30 | 2003-2004: Variable Assist Power Steering, air-suspension compressor, instrument cluster |
| – | 2005-2011: not used | |
| 115 | 50 | 2003-2004: ignition-switch feed to I/P fuses 16 and 18 |
| – | 2005-2011: not used | |
| 116 | 30 | 2003-2004: wipers |
| – | 2005-2011: not used | |
| 117 | – | Not used |
| 118 | 20 | 2003-2004: ABS |
| – | 2005-2011: not used | |
| 401 | – | 2003-2004: not used |
| 601 | – | 2003-2004: not used |
| 20 | 2005-2011: circuit breaker – power seats, lumbar support, decklid | |
| 602 | 20 | 2003-2004: circuit breaker – adjustable pedals, power seats, locks, decklid, lumbar support |
| 20 | 2005-2011: circuit breaker – power-window relay feed, RUN/ACC | |
| Relay | ||
| 201 | Relay | 2003-2004: horn |
| Relay | 2005-2011: A/C clutch | |
| 202 | Relay | 2003-2004: Powertrain Control Module |
| Relay | 2005-2011: not used | |
| 203 | Relay | 2003-2004: fuel pump |
| Relay | 2005-2011: ignition coil | |
| 204 | Relay | 2003-2004: A/C clutch |
| Relay | 2005-2011: Powertrain Control Module | |
| 205 | Relay | 2003-2004: traction-control switch |
| Relay | 2005: not used | |
| Relay | 2006-2011: fog lamps | |
| 206 | Relay | 2003-2004: not used |
| Relay | 2005-2011: fuel | |
| 207 | Relay | Not used |
| 208 | Relay | 2003-2004: moonroof |
| Relay | 2005-2011: not used | |
| 209 | Relay | 2003-2004: not used |
| Relay | 2005-2011: horn | |
| 301 | Relay | 2003-2004: blower motor |
| Relay | 2005-2011: starter | |
| 302 | Relay | 2003-2004: starter solenoid |
| Relay | 2005-2011: air-suspension compressor | |
| 303 | Relay | 2003-2004: air-suspension compressor |
| Relay | 2005-2011: blower motor | |
| 304 | Relay | 2003-2004: rear-window defrost |
| Relay | 2005-2006: power windows – RUN/ACC | |
| Relay | 2007-2011: rear-window defrost | |
| Diode | ||
| 501 | Diode | 2003-2004: Powertrain Control Module |
| Diode | 2005-2008: A/C clutch | |
| Diode | 2009-2011: not used | |
| 502 | Diode | 2003: not used |
| Diode | 2004: A/C clutch | |
| Diode | 2005-2011: Powertrain Control Module | |
| 503 | Diode | 2003-2004: not used |
| Diode | 2005-2007: horn, door latch | |
| Diode | 2008-2011: not used | |
Passenger-compartment fuse panel
2003-2004 layout
2005-2011 layout
| Position | Rating [A] | Protected component / function |
|---|---|---|
| 1 | 15 | 2003-2004: audio, CD changer |
| 15 | 2005-2006: instrument cluster, Lighting Control Module – interior lighting | |
| 10 | 2007-2011: ignition START – starter-relay coil, Digital Transmission Range Sensor | |
| 2 | 5 | 2003-2004: audio |
| 10 | 2005-2006: ignition ON – EATC module, A/C mode switch on EATC-equipped vehicles, A/C relay coil – 2006 | |
| 7.5 | 2007-2011: power mirrors, door-lock switches – 2007-2008, mirror/keypad/decklid/adjustable-pedal switches, Driver Door Module, instrument cluster | |
| 3 | 7.5 | 2003-2004: mirrors |
| 10 | 2005-2006: EATC module | |
| 5 | 2007-2011: ignition START – audio mute | |
| 4 | 10 | 2003-2004: airbags |
| 10 | 2005-2006: ignition ON – ABS module; PCV – 2005; Rear Air Suspension Module and Variable Assist Power Steering – 2006 | |
| 10 | 2007-2011: Lighting Control Module – autolamp sensor | |
| 5 | – | 2003-2004: not used |
| 10 | 2005-2006: speed-control deactivation switch, stop signal, Brake-Transmission Shift Interlock – 2005, column-shift transmission | |
| 7.5 | 2007-2011: ignition ON/ACC – Lighting Control Module | |
| 6 | 15 | 2003-2004: cluster warning-lamp module, overdrive-control switch, Lighting Control Module, A/C clutch, analog cluster – 2004 |
| 10 | 2005-2006: ignition ON – instrument cluster | |
| 7.5 | 2007-2011: Lighting Control Module | |
| 7 | 10 | 2003-2004: Driver Door Module, premium radio |
| 10 | 2005-2006: Lighting Control Module – parking lamps, switch illumination in 2005, cornering lamps in 2006 | |
| 10 | 2007-2011: ignition ON/ACC – wiper module | |
| 8 | 25 | 2003-2004: PCM power relay, coil-on-plug ignition, radio noise capacitor, Passive Anti-Theft System |
| 10 | 2005: ignition ON – Rear Air Suspension Module, Variable Assist Power Steering | |
| 10 | 2006: Lighting Control Module | |
| 10 | 2007-2011: EATC module – EATC-equipped vehicles | |
| 9 | 5 | 2003-2004: transmission-range sensor |
| 10 | 2005-2006: Lighting Control Module – headlamps/cornering lamps in 2005, switch illumination in 2006 | |
| 7.5 | 2007-2011: ignition ON/ACC – door-lock switch illumination, heated-seat switch illumination, moonroof – 2007-2008, overhead console, radio, antenna, electrochromic mirror, window-relay coil | |
| 10 | 10 | 2003-2004: rear-window defrost, heated mirrors |
| 5 | 2005: ignition ON/START – Driver Door Module | |
| 5 | 2006: ignition START – audio mute | |
| 15 | 2007-2011: hazard lamps | |
| 11 | 5 | 2003-2004: traction-control indicator relay – ABS with traction control |
| 10 | 2005: ignition START – ON/ACC relay coil | |
| 10 | 2006: ignition ON/ACC – window-relay coil | |
| 15 | 2007-2011: ignition ON – turn signals | |
| 12 | 15 | 2003-2004: multifunction switch for turn/hazard lamps |
| 10 | 2005-2006: ignition START – starter-relay coil, Digital Transmission Range Sensor – 2006 | |
| 15 | 2007-2011: audio | |
| 13 | 5 | 2003-2004: radio |
| 10 | 2005-2006: ignition START – wiper module | |
| 10 | 2007-2011: ignition ON – ABS – 2007-2008, Rear Air Suspension Module, Variable Assist Power Steering – 2007-2008, instrument cluster | |
| 14 | 10 | 2003-2004: ABS, instrument cluster |
| 10 | 2005-2006: ignition ON – Brake-Transmission Shift Interlock, floor-shift transmission | |
| 15 | 2007-2011: adjustable pedals | |
| 15 | 15 | 2003-2004: speed-control module, Lighting Control Module, clock – 2003, EATC blower relay, door-lock switch illumination, heated-seat switch, moonroof |
| 7.5 | 2005-2006: ignition START – Lighting Control Module, door-lock switch illumination, heated-seat switch illumination, moonroof, overhead console, electrochromic mirror | |
| 10 | 2007-2011: ignition ON – EATC module, A/C mode switch on manual-A/C vehicles, A/C blower-relay coil | |
| 16 | 15 | 2003-2004: reversing lamps, shift lock, DRL module, Variable Assist Power Steering, electrochromic day/night mirror, overhead console, air suspension, climate control, heated-seat module, speed-chime module |
| 15 | 2005-2006: ignition ON – turn signals | |
| 20 | 2007-2008: cigarette lighter, OBD-II | |
| 20 | 2009-2011: OBD-II | |
| 17 | 7.5 | 2003-2004: wiper motor |
| 10 | 2005-2006: ignition START – audio | |
| 10 | 2007-2011: ignition ON – A/C mode switch on manual-A/C vehicles, blend door, heated-seat modules, Brake-Transmission Shift Interlock for floor-shift transmission | |
| 18 | – | 2003-2004: not used |
| 10 | 2005-2006: ignition ON – A/C mode switch on manual-A/C vehicles, blend door, Driver Door Module, heated-seat modules, DRL module – 2003 | |
| 15 | 2007-2011: Lighting Control Module – interior lighting | |
| 19 | 15 | 2003: brake lamps |
| 15 | 2004: brake lamps, brake signal to PCM, ABS and speed-control module, Driver Door Module | |
| 10 | 2005-2011: left low beam; Daytime Running Lamps – 2005 | |
| 20 | – | 2003-2004: not used |
| 10 | 2005-2011: ignition ON/ACC – reversing lamps; ABS – 2009-2011 | |
| 21 | 15 | 2003-2004: Lighting Control Module for parking lamps and interior illumination, autolamp/sunload sensor |
| 10 | 2005-2011: right low beam; Daytime Running Lamps – 2005 | |
| 22 | 20 | 2003-2004: speed-control servo, multifunction hazard switch, brake on/off switch, I/P fuse 19 feed – 2004 |
| 10 | 2005-2011: ignition ON/ACC – Restraints Control Module, Occupant Classification Sensor, Passenger Airbag Deactivation Indicator | |
| 23 | 15 | 2003-2004: EATC module, instrument cluster, clock – 2003, Lighting Control Module, interior lamps, door-lock switches |
| 15 | 2005-2011: multifunction switch – flash-to-pass, Lighting Control Module – high beams | |
| 24 | 10 | 2003-2004: left low beam |
| 10 | 2005-2011: ignition ON/ACC – Passive Anti-Theft System, PCM relay coil, fuel-relay coil, ignition-coil relay coil | |
| 25 | 15 | 2003-2004: cigarette lighter |
| 10 | 2005-2006: autolamp/sunload sensor, mirrors, door-lock switches, adjustable-pedal switch, keypad switch – 2006, decklid switch – 2006, Driver Door Module | |
| 15 | 2007-2011: Lighting Control Module – parking lamps, cornering lamps, license lamps | |
| 26 | 10 | 2003-2004: right low beam |
| 10 | 2005: ignition ON/ACC – analog cluster, warning-lamp module, Lighting Control Module, overdrive-cancel switch, rear-defrost relay coil | |
| 10 | 2006-2011: ignition ON/START – cluster, Lighting Control Module, overdrive-cancel switch, rear-defrost relay coil – 2006, traction-control switch – 2009-2011 | |
| 27 | 25 | 2003-2004: Lighting Control Module for cornering lamps and high beams |
| 20 | 2005-2006: cigarette lighter, OBD-II, power point – 2005 | |
| – | 2007-2011: not used | |
| 28 | 20 | 2003-2004: circuit breaker – power windows, Driver Door Module – 2003 |
| 10 | 2005-2006: Center High-Mounted Stop Lamp | |
| 7.5 | 2007-2011: brake signal, Lighting Control Module / Brake-Transmission Shift Interlock, ABS | |
| 29 | – | 2003-2004: not used |
| 15 | 2005-2006: audio | |
| – | 2007-2011: not used | |
| 30 | – | 2003-2004: not used |
| 15 | 2005-2006: stop lamps, multifunction switch | |
| – | 2007-2011: not used | |
| 31 | – | 2003-2004: not used |
| 15 | 2005-2006: hazard lamps | |
| 5 | 2007-2011: push-button input – Lighting Control Module | |
| 32 | – | 2003-2004: not used |
| 10 | 2005-2006: heated mirrors, rear-defrost indicator | |
| – | 2007-2011: not used | |
| 33 | – | 2005-2011: not used |
| Relay | ||
| R1 | Relay | 2005-2006: rear-window defrost |
| Relay | 2005-2011: power window | |
Commonly checked fuses
- Fuel pump: under-hood position 5 – 20 A on 2003-2004. From 2005, position 4 – 20 A supplies the fuel-pump relay feed and relay 206 is used for the fuel circuit.
- Cigarette lighter / OBD-II: cabin position 25 – 15 A on 2003-2004; position 27 – 20 A on 2005-2006; position 16 – 20 A on 2007-2008 supplies the lighter and OBD-II; position 16 – 20 A supplies OBD-II on 2009-2011.
- Low beams: cabin positions 24 and 26 on 2003-2004, and positions 19 and 21 from 2005.
- ABS: assignments vary by year across both the under-hood and cabin panels; use the exact year row rather than only the fuse number.
FAQ – Mercury Grand Marquis 2003-2011 fuses
Why does one fuse number appear several times?
Mercury reused the same fuse positions with different ratings and functions as the electrical system changed. The repeated rows are intentional and correspond to different model years.
Where is the OBD-II fuse?
On 2005-2006 cars, check cabin position 27 – 20 A. On 2007-2011 cars, check position 16 – 20 A. On 2007-2008 that circuit also supplies the cigarette lighter.
Where is the fuel-pump fuse?
For 2003-2004, the main under-hood fuel-pump fuse is position 5 – 20 A. From 2005 the design changes and position 4 – 20 A supplies the fuel-pump relay circuit.
Can the 2003 fuse table be used for a 2010 Grand Marquis?
No. The later electrical layout differs substantially in both the Power Distribution Box and the passenger fuse panel.
