Mercury Milan 2006-2009 uses a Smart Junction Box in the passenger compartment and a Power Distribution Box in the engine compartment. The under-hood arrangement differs between 2006-2007 and 2008-2009, so both tables are kept separately.
For the facelift and Hybrid version, see Mercury Milan and Milan Hybrid 2010-2011.

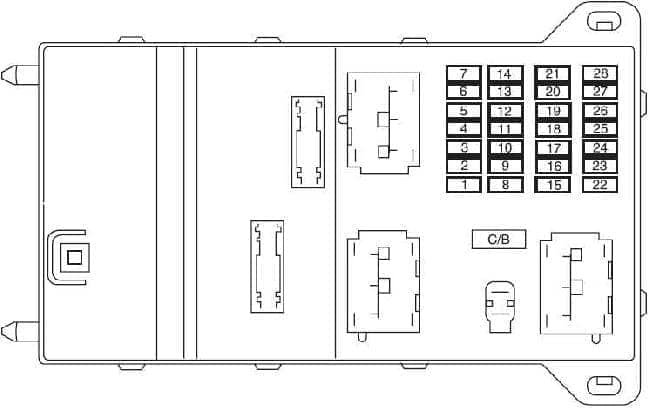

Passenger-compartment fuse panel
| Position | Rating [A] | Protected component / function |
|---|---|---|
| 1 | 10 | Reversing lamps, electrochromic mirror. |
| 2 | 20 | Horn. |
| 3 | 15 | Battery saver: interior lamps, puddle lamps, luggage lamp, power windows. |
| 4 | 15 | Parking lamps, side markers, license-plate lamps. |
| 5 | – | Not used. |
| 6 | – | Not used. |
| 7 | – | Not used. |
| 8 | 30 | Heated rear window. |
| 9 | 10 | Heated mirrors. |
| 10 | 30 | Starter coil, PCM. |
| 11 | 15 | High beams. |
| 12 | 7.5 | Delayed accessories: audio, moonroof, lock-switch illumination, electrochromic mirrors, ambient lighting – 2008-2009. |
| 13 | 7.5 | Instrument cluster, analog clock, climate-control heads; PCM keep-alive memory and canister-vent solenoid – 2006-2007. |
| 14 | 15 | Washer pump. |
| 15 | 20 | Cigarette lighter. |
| 16 | 15 | Door-lock actuator, decklid-lock solenoid. |
| 17 | 20 | Subwoofer. |
| 18 | 20 | Audio units, OBD-II connector. |
| 19 | 7.5 | Not used / spare. |
| 20 | 7.5 | Power mirrors, satellite-radio module – 2008-2009, AWD – 2008-2009. |
| 21 | 7.5 | Stop lamps, CHMSL – 2008-2009. |
| 22 | 7.5 | Audio. |
| 23 | 7.5 | Wiper-relay coil, instrument-cluster logic. |
| 24 | 7.5 | Occupant Classification System – passenger seat, Passenger Airbag Deactivation indicator. |
| 25 | 7.5 | Restraints Control Module. |
| 26 | 7.5 | PATS transceiver, shift-lock solenoid, brake-pedal switch, automatic-transmission relay coil – 2008-2009, reverse switch for manual transmission – 2008-2009. |
| 27 | 7.5 | Instrument cluster, climate-control heads. |
| 28 | 10 | ABS / traction control, heated seats, compass, reverse-sensing system – 2008-2009. |
| C/B | 30 | Circuit breaker: moonroof, delayed accessories – SJB fuse 12 and power windows. |

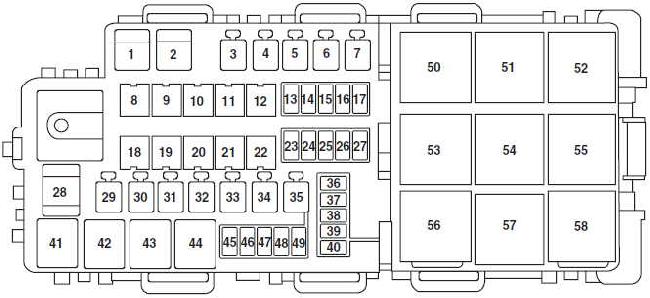

Engine-compartment fuse box – 2008-2009
| Position | Rating [A] | Protected component / function |
|---|---|---|
| 1 | 60 | Smart Junction Box feed – fuses 12, 13, 14, 15, 16, 17, 18 and circuit breaker. |
| 2 | 60 | Smart Junction Box feed – fuses 1, 2, 4, 10 and 11. |
| 3 | 40 | Powertrain power, PCM relay coil. |
| 4 | 40 | Blower motor. |
| 5 | – | Not used. |
| 6 | 40 | Heated rear window, heated mirrors. |
| 7 | 40 | PETA pump power – PZEV. |
| 8 | 40 | ABS pump. |
| 9 | 20 | Wipers. |
| 10 | 30 | ABS valves. |
| 11 | 20 | Heated seats. |
| 12 | – | Not used. |
| 13 | 10 | SYNC. |
| 14 | 15 | Ignition switch. |
| 15 | – | Not used. |
| 16 | 15 | Transmission. |
| 17 | 10 | Alternator sense. |
| 18 | – | Not used. |
| 19 | 40 | Logic feed to Smart Junction Box – solid-state devices. |
| 20 | – | Not used. |
| 21 | – | Not used. |
| 22 | 20 | Console power point. |
| 23 | 10 | PCM keep-alive memory, FNR5 transmission and canister-vent solenoid. |
| 24 | 15 | Fog lamps. |
| 25 | 10 | A/C compressor clutch. |
| 26 | – | Not used. |
| 27 | – | Not used. |
| 28 | 60 | Engine cooling fan. |
| 29 | – | Not used. |
| 30 | 30 | Fuel-pump / injector relay. |
| 31 | – | Not used. |
| 32 | 30 | Driver power seat. |
| 33 | 20 | Moonroof. |
| 34 | – | Not used. |
| 35 | – | Not used. |
| 36 | 1 | PCM diode. |
| 37 | 1 | One-Touch Integrated Start diode. |
| 38 | – | Not used. |
| 39 | – | Not used. |
| 40 | – | Not used. |
| 45 | 5 | PETA pump feedback – PZEV. |
| 46 | 15 | Fuel injectors. |
| 47 | 15 | PCM Class B. |
| 48 | 15 | Coil-on-plug ignition. |
| 49 | 15 | PCM Class C. |
| Relay | ||
| 41 | Relay | Fog-lamp relay. |
| 42 | Relay | Wiper-park relay. |
| 43 | Relay | A/C clutch relay. |
| 44 | Relay | FNR5 transmission relay. |
| 50 | Relay | Not used. |
| 51 | Relay | Not used. |
| 52 | Relay | Blower relay. |
| 53 | Relay | Not used. |
| 54 | Relay | Fuel-pump / injector relay. |
| 55 | Relay | Wiper relay. |
| 56 | Relay | Not used. |
| 57 | Relay | PCM relay. |
| 58 | Relay | PETA pump relay – PZEV. |

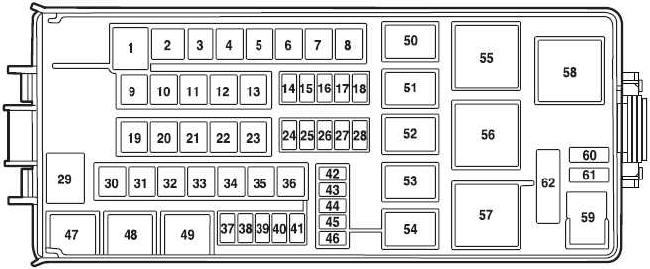

Engine-compartment fuse box – 2006-2007
| Position | Rating [A] | Protected component / function |
|---|---|---|
| 1 | 60 | Smart Junction Box feed – fuses 12, 13, 14, 15, 16, 17, 18 and circuit breaker. |
| 2 | 40 | Powertrain power. |
| 3 | – | Not used. |
| 4 | 40 | Blower motor. |
| 5 | – | Not used. |
| 6 | 40 | Heated rear window, heated mirrors. |
| 7 | 40 | PETA pump – PZEV engine only. |
| 8 | – | Not used. |
| 9 | 20 | Wipers. |
| 10 | 20 | ABS valves. |
| 11 | 20 | Heated seats. |
| 12 | – | Not used. |
| 13 | – | Not used. |
| 14 | 15 | Ignition switch. |
| 15 | – | Not used. |
| 16 | 15 | Transmission. |
| 17 | 20 | Console power point. |
| 18 | 10 | Alternator sense. |
| 19 | 40 | Logic feed to Smart Junction Box – solid-state devices. |
| 20 | – | Not used. |
| 21 | – | Not used. |
| 22 | – | Not used. |
| 23 | 60 | Smart Junction Box feed – fuses 1, 2, 4, 10 and 11. |
| 24 | 15 | Fog lamps. |
| 25 | 10 | A/C compressor clutch. |
| 26 | – | Not used. |
| 27 | – | Not used. |
| 28 | – | Not used. |
| 29 | 50 | Engine cooling fan. |
| 30 | 30 | Fuel-pump relay feed. |
| 31 | – | Not used. |
| 32 | 30 | Driver power seat. |
| 33 | 20 | Moonroof. |
| 34 | – | Not used. |
| 35 | – | Not used. |
| 36 | 40 | ABS pump. |
| 37 | – | Not used. |
| 38 | – | Not used. |
| 39 | – | Not used. |
| 40 | – | Not used. |
| 41 | – | Not used. |
| 42 | 15 | PCM non-emissions circuits. |
| 43 | 15 | Coil-on-plug ignition. |
| 44 | 15 | PCM emissions-related circuits. |
| 45 | 5 | PETA pump feedback – PZEV engine only. |
| 46 | 15 | Fuel injectors. |
| 62 | – | Circuit breaker: empty / not used. |
| Diode | ||
| 60 | Diode | Fuel pump. |
| 61 | Diode | Not used. |
| Relay | ||
| 47 | Relay | Fog lamps. |
| 48 | Relay | Not used. |
| 49 | Relay | Not used. |
| 50 | Relay | Wiper. |
| 51 | Relay | A/C clutch. |
| 52 | Relay | Not used. |
| 53 | Relay | Wiper ON. |
| 54 | Relay | Transmission – I4 engine only. |
| 55 | Relay | Fuel pump. |
| 56 | Relay | Blower motor. |
| 57 | Relay | PCM. |
| 58 | Relay | PETA pump – PZEV engine only. |
| 59 | Relay | Not used. |
Commonly checked circuits
- Cigarette lighter: cabin position 15 – 20 A.
- OBD-II: cabin position 18 – 20 A.
- Fuel pump: under-hood position 30 – 30 A; relay 54 on 2008-2009 and relay 55 on 2006-2007.
- ABS: 2008-2009 uses positions 8 – 40 A and 10 – 30 A; 2006-2007 uses positions 36 – 40 A and 10 – 20 A.
FAQ – Mercury Milan 2006-2009 fuses
Why are there two under-hood tables?
The Power Distribution Box changed between 2007 and 2008, including ABS, fuel-pump, cooling-fan and relay assignments.
Where is the OBD-II fuse?
Passenger-compartment position 18 – 20 A.
