Mercury Milan and Milan Hybrid 2010-2011 use a passenger-compartment fuse panel and an engine-compartment Power Distribution Box. Hybrid models have a substantially different under-hood layout and an additional relay box, so their circuits are shown separately.
For the earlier version, see Mercury Milan 2006-2009.

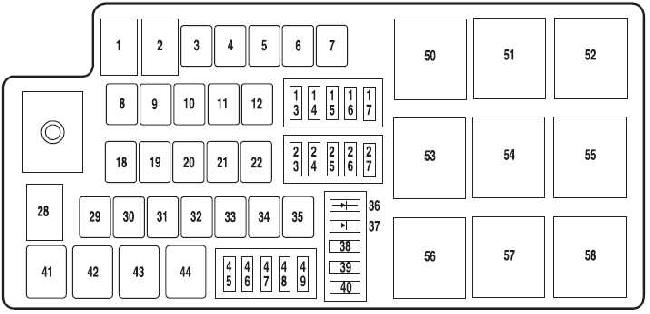

Engine-compartment fuse box – gasoline models
| Position | Rating [A] | Protected component / function |
|---|---|---|
| 1 | 50 | Electronic Power Assist Steering B+. |
| 2 | 50 | Electronic Power Assist Steering B+. |
| 3 | 40 | Powertrain Control Module – relay 57 feed. |
| 4 | – | Not used. |
| 5 | 30 | Starter – relay 55 feed. |
| 6 | 40 | Heated rear window – relay 53 feed. |
| 7 | – | Not used. |
| 8 | 40 | ABS pump. |
| 9 | 20 | Washer. |
| 10 | 30 | ABS valve. |
| 11 | – | Not used. |
| 12 | – | Not used. |
| 13 | – | Not used. |
| 14 | – | Not used. |
| 15 | – | Not used. |
| 16 | 15 | Transmission module – 3.5 L. |
| 17 | 10 | Alternator. |
| 18 | – | Not used. |
| 19 | – | Not used. |
| 20 | – | Not used. |
| 21 | – | Not used. |
| 22 | 20 | Console power point. |
| 23 | 10 | PCM keep-alive power, canister vent. |
| 24 | – | Not used. |
| 25 | 10 | A/C clutch – relay 43 feed. |
| 26 | – | Not used. |
| 27 | – | Not used. |
| 28 | 60 | Cooling-fan motor – 2.5 L and 3.0 L. |
| 80 | Cooling-fan motor – 3.5 L. | |
| 29 | 20 | Front power point. |
| 30 | 30 | Fuel relay – relay 54 feed. |
| 31 | 30 | Passenger power seat. |
| 32 | 30 | Driver power seat. |
| 33 | 20 | Moonroof motor feed. |
| 34 | – | Not used. |
| 35 | 40 | Front A/C blower motor – relay 52 feed. |
| 38 | 10 | Heated exterior mirrors. |
| 39 | – | Not used. |
| 40 | – | Not used. |
| 45 | 15 | Fuel injectors. |
| 46 | 15 | PCM. |
| 47 | 10 | General powertrain components, A/C clutch relay, reversing lamps. |
| 48 | 15 | Ignition coils. |
| 15 | Emissions-related powertrain components – 2.5 L and 3.5 L. | |
| 49 | 20 | Emissions-related powertrain components – 3.0 L. |
| Diode | ||
| 36 | 1 | Fuel pump. |
| 37 | 1 | One-touch integrated start. |
| Relay | ||
| 41 | Relay | Tail lamps. |
| 42 | Relay | Not used. |
| 43 | Relay | A/C clutch. |
| 44 | Relay | Not used. |
| 50 | Relay | Not used. |
| 51 | Relay | Not used. |
| 52 | Relay | Blower motor. |
| 53 | Relay | Heated rear window. |
| 54 | Relay | Fuel. |
| 55 | Relay | Starter. |
| 56 | Relay | Not used. |
| 57 | Relay | PCM. |
| 58 | Relay | Not used. |
Passenger-compartment fuse panel
| Position | Rating [A] | Protected component / function |
|---|---|---|
| 1 | 30 | Smart window motor control. |
| 2 | 15 | Brake on/off switch, center high-mounted stop lamp. |
| 3 | 15 | Hybrid: HEV battery fan. |
| 4 | 30 | Hybrid: 110 V inverter. |
| 5 | 10 | Keypad illumination, shift interlock. |
| 6 | 20 | Turn signals. |
| 7 | 10 | Left low beam. |
| 8 | 10 | Right low beam. |
| 9 | 15 | Lighting system. |
| 10 | 15 | Illumination, lamps. |
| 11 | 10 | AWD module. |
| 12 | 7.5 | Power exterior mirrors. |
| 13 | 5 | SYNC module. |
| 14 | 10 | Electronic Finish Panel radio and climate-control button modules, navigation display, center information display, GPS module. |
| 15 | 10 | Climate control. |
| 16 | 15 | Not used / spare. |
| 17 | 20 | Door locks, decklid release. |
| 18 | 20 | Heated seats. |
| 19 | 25 | Amplifier. |
| 20 | 15 | On-board diagnostic connector. |
| 21 | 15 | Fog lamps. |
| 22 | 15 | Headlamps, parking lamps, license-plate lamps. |
| 23 | 15 | High beams. |
| 24 | 20 | Horn. |
| 25 | 10 | Demand lamps / battery-saver relay. |
| 26 | 10 | Instrument-cluster battery power. |
| 27 | 20 | Ignition switch. |
| 28 | 5 | Radio sense circuit. |
| 29 | 5 | Instrument-cluster ignition power. |
| 30 | 5 | Not used / spare. |
| 31 | 10 | Not used / spare. |
| 32 | 10 | Restraints Control Module. |
| 33 | 10 | Not used / spare. |
| 34 | 5 | Not used / spare. |
| 35 | 10 | Reverse-sensing system, Blind Spot Information System, heated seats, rear-view camera, 110 V inverter, AWD. |
| 36 | 5 | Passive Anti-Theft System transceiver. |
| 37 | 10 | Hybrid: humidity sensor. |
| 38 | 20 | Subwoofer amplifier. |
| 39 | 20 | Radio. |
| 40 | 20 | Not used / spare. |
| 41 | 15 | Auto-dimming mirror, moonroof, compass, ambient lighting. |
| 42 | 10 | Electronic stability control, Electronic Power Assist Steering. |
| 43 | 10 | Rain sensor. |
| 44 | 10 | Fuel-diode / powertrain-control module circuit. |
| 45 | 5 | Heated-seat illumination and blower-relay coil, wiper washer. |
| 46 | 7.5 | Occupant Classification Sensor module, Passenger Airbag Deactivation indicator. |
| 47 | 30 | Circuit breaker: power windows. |
| Relay | ||
| 48 | Relay | Delayed accessories. |

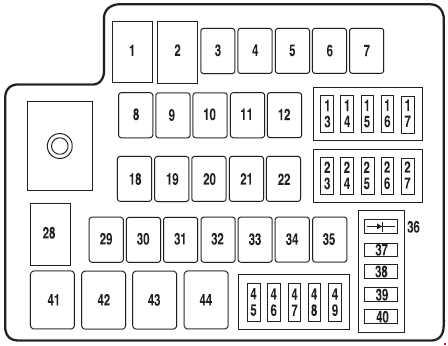

Engine-compartment fuse box – Hybrid
| Position | Rating [A] | Protected component / function |
|---|---|---|
| 1 | 50 | Electronic Power Assist Steering B+. |
| 2 | 50 | Electronic Power Assist Steering B+. |
| 3 | 40 | Powertrain Control Module – auxiliary relay 5 feed. |
| 4 | – | Not used. |
| 5 | – | Not used. |
| 6 | 40 | Heated rear window – relay 4 feed. |
| 7 | 40 | Vacuum pump – relay 6 feed. |
| 8 | 50 | Brake-system pump. |
| 9 | 20 | Washer. |
| 10 | 30 | Brake-control valves. |
| 11 | – | Not used. |
| 12 | – | Not used. |
| 13 | 15 | Engine coolant pump / motor-electronics circuit – relays 42 and 44. |
| 14 | – | Not used. |
| 15 | – | Not used. |
| 16 | – | Not used. |
| 17 | 10 | HEV high-voltage battery module. |
| 18 | 30 | 110 V power outlet. |
| 19 | – | Not used. |
| 20 | – | Not used. |
| 21 | – | Not used. |
| 22 | 20 | Console power point. |
| 23 | 10 | PCM / transmission-control module keep-alive power, vent fan. |
| 24 | – | Not used. |
| 25 | – | Not used. |
| 26 | 15 | Left headlamp – relay 1 feed. |
| 27 | 15 | Right headlamp – relay 2 feed. |
| 28 | 60 | Cooling-fan motor. |
| 29 | 20 | Front power point. |
| 30 | 30 | Fuel relay – relay 43 feed. |
| 31 | 30 | Passenger power seat. |
| 32 | 30 | Driver power seat. |
| 33 | 20 | Moonroof. |
| 34 | – | Not used. |
| 35 | 40 | Front A/C blower motor – auxiliary relay 3 feed. |
| 36 | 1 | Diode: fuel pump. |
| 37 | 5 | Vacuum-pump monitoring. |
| 38 | 10 | Heated exterior mirrors. |
| 39 | 10 | Transmission Control Module. |
| 40 | 10 | Powertrain Control Module. |
| 45 | 15 | Fuel injectors. |
| 46 | 15 | Coil-on-plug ignition. |
| 47 | 10 | General PCM circuits: heater pump, motor-electronics coolant-pump relay coils, DC/DC converter, reversing lamps, brake controller. |
| 48 | 20 | HEV high-voltage battery module, fuel-pump relay. |
| 49 | 15 | Powertrain Control Module – emissions related. |
| Relay | ||
| 41 | Relay | Reversing lamps. |
| 42 | Relay | Heater pump. |
| 43 | Relay | Fuel pump. |
| 44 | Relay | Motor-electronics coolant pump. |
Hybrid auxiliary relay box
| Position | Function |
|---|---|
| 1 | Left headlamp. |
| 2 | Right headlamp. |
| 3 | Blower motor. |
| 4 | Heated rear window. |
| 5 | Powertrain Control Module. |
| 6 | Vacuum-pump shutdown. |
| 7 | Vacuum pump. |
Commonly checked circuits
- OBD-II: passenger position 20 – 15 A.
- Front power point: engine position 29 – 20 A.
- Console power point: engine position 22 – 20 A.
- Fuel circuit: gasoline models use position 30 – 30 A and relay 54; Hybrid uses position 30 – 30 A and relay 43.
- ABS / brake system: gasoline models use positions 8 – 40 A and 10 – 30 A; Hybrid uses brake-system positions 8 – 50 A and 10 – 30 A.
FAQ – Mercury Milan 2010-2011 fuses
Can I use the gasoline fuse table for a Milan Hybrid?
No. The Hybrid has a different under-hood power distribution layout and an additional relay box for headlamps, blower, PCM and vacuum-pump circuits.
Where is the OBD-II fuse?
Passenger-compartment position 20 – 15 A.
