Mercury Sable 1986-1995 covers the first two generations of the Sable. The electrical system uses a passenger-compartment fuse panel and an under-hood high-current fuse box. Several cabin assignments changed during production, especially from 1993 onward.
For the following generation, see Mercury Sable 1996-1999.

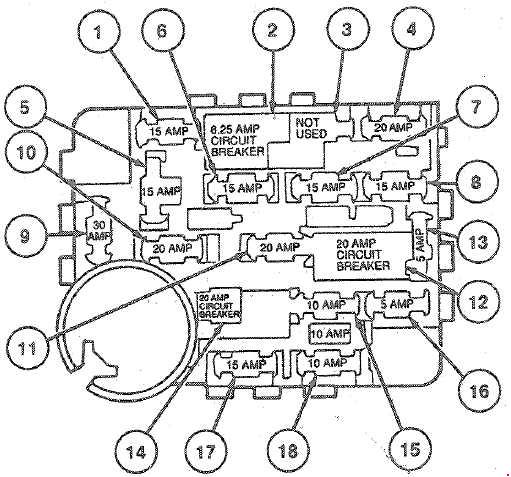

Passenger-compartment fuse panel
| Position | Rating [A] | Protected component / function |
|---|---|---|
| 1 | 15 | Stop lamps, center high-mounted stop lamp, turn signals, turn-signal indicators and speed control. |
| 2 | 8.25 | Windshield wiper and washer circuit breaker. |
| 3 | – | Not used. |
| 4 | 15 | 1986-1992: front parking lamps, side-marker lamps and tail lamps, lights-on warning and front Laser Lamp system where equipped. |
| 4 | 20 | 1993-1995: front parking lamps, side-marker lamps and tail lamps, lights-on warning and front Laser Lamp system where equipped. |
| 5 | 15 | Instrument cluster, heated rear window, electronic flasher, reversing lamps, heated oxygen sensor, keyless-entry module, shift interlock and door-lock control. |
| 6 | 15 | Rear wiper and washer on wagon, diagnostic lamps, warning chime, switch/display illumination, power-window relay and speed-control system. |
| 7 | 15 | Fog lamps; 1992-1995 also airbag module. |
| 8 | 15 | Clock, radio memory, glove-box and luggage-compartment lamps, interior lighting, keyless-entry module, power mirrors, under-hood lamp and key-in warning chime. |
| 9 | 30 | Blower motor for 1986-1995; on 1986-1991 also EATC blower-speed controller. |
| 10 | 20 | Flash-to-pass, high beams and high-beam indicator. |
| 11 | 20 | Radio, Premium Sound amplifier, power-antenna motor and auxiliary radio controls. |
| 12 | 20 | 1986-1992: circuit breaker for cigarette lighter, horn relay and horns; 1993-1995: position unused or omitted in factory tables. |
| 13 | 5 | Instrument-cluster, radio, ashtray and EATC illumination; rear-defrost, wiper and headlamp switches; clock and PRNDL indicator. |
| 14 | 20 | Power-window circuit breaker; depending on model year/equipment also related convenience circuits. |
| 15 | 10 | License-plate lamps, side-marker lamps and tail lamps. |
| 16 | 5 | Electronic instrument cluster and EATC control. |
| 17 | 15 | A/C compressor clutch, EATC and blend-door actuator. |
| 18 | 10 | Autolamp module, warning indicators, low-oil relay and warning chime. |

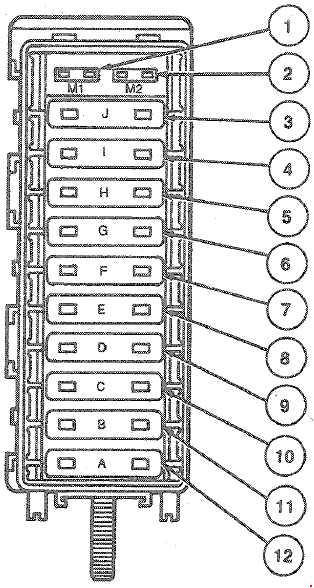

Engine-compartment fuse box
| Position | Rating [A] | Protected component / function |
|---|---|---|
| 1 | 10 | Ignition coil. |
| 2 | 10 | Accessory power. |
| 3 | 40 | Power door locks and power windows. |
| 4 | 40 | Anti-lock Brake System. |
| 5 | 40 | Heated rear window. |
| 6 | 30 | ABS module. |
| 7 | 60 | Headlamps. |
| 8 | 40 | Passenger-compartment fuse-panel feed. |
| 9 | 60 | Engine cooling fan. |
| 10 | 30 | Electronic engine control; 1994 documentation also lists PCM and fuel-pump relay. |
| 11 | 60 | Ignition switch and blower motor. |
| 12 | 60 | Ignition switch and blower motor. |
Commonly checked circuits
- Cigarette lighter: cabin position 12 – 20 A on 1986-1992 cars.
- Blower motor: cabin position 9 – 30 A; under-hood positions 11 and 12 also supply ignition/blower circuits.
- Cooling fan: under-hood position 9 – 60 A.
- ABS: under-hood positions 4 – 40 A and 6 – 30 A.
FAQ – Mercury Sable 1986-1995 fuses
Why is cabin position 4 listed twice?
The rating changed from 15 A on 1986-1992 cars to 20 A on 1993-1995 cars while serving the exterior-lighting circuit.
Where is the cigarette-lighter fuse?
For 1986-1992, check cabin position 12 – 20 A. Factory tables for 1993-1995 do not list that position the same way, so match the vehicle year before replacing a fuse.
