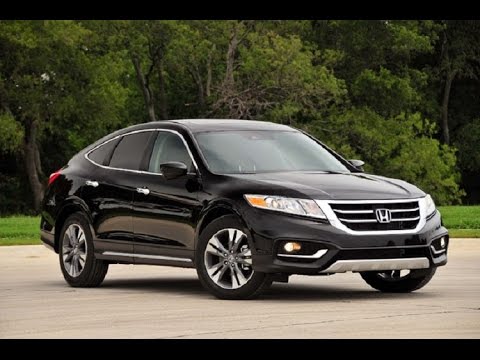

Honda Crosstour (2013-2015) – fuse box diagram
Year of production: 2013, 2014, 2015
Engine compartment fuse box
| Number | Protected circuit | Rating in amperes [A]. |
| 1 | Battery | 120 * 3 |
| Battery | 120 * 2 | |
| Passenger fuse box | 40 | |
| 2 | ESP MTR | 70 |
| VSA SFR | 40 | |
| VSA engine | 30 | |
| AS F / B OP | 40 | |
| Headlight washer * | 30 | |
| – | – | |
| 3 | IG Main | 50 |
| – | – | |
| Passenger side light Main | 30 | |
| DR F / B STD | 602 | |
| Driver’s main side light | 30 | |
| Main fan | 30 | |
| Wiper motor | 30 | |
| Auxiliary fan | 30 | |
| 4 | Fan relay | 7,5 |
| 5 | Rear defroster | 40 |
| 6 | Auxiliary fan motor * 2 | 20 |
| 7 | Risk | 15 |
| 8 | Horn, STOP | 20 |
| 9 | – | – |
| 10 | Movie trailer | 15 |
| 11 | IG coil | 15 |
| 12 | FI Sub | 15 |
| 13 | IGI main 1 * 3 | 30 |
| 14 | IGI main 2 * 3 | 30 |
| 15 | Create backup | 10 |
| 16 | Interior lights | 7,5 |
| 17 | FI Main | 15 |
| 18 | DBW | 15 |
| 19 | ACM * 3 | 20 |
| 20 | Heater motor | 40 |
| 21 | MG clutch | 7,5 |
| * 1: Models with intelligent input system have ENGINE START / STOP button instead of ignition switch. * 2: 4-cylinder models. * 3: 6-cylinder models |
||
Interior fuse box (driver’s side)
| Number | Protected circuit | Rating in amperes [A]. |
| 1 | – | – |
| 2 | Seat memory * | 7,5 |
| 3 | Washing machine | 15 |
| 4 | Wiper | 10 |
| 5 | ODS | 7,5 |
| 6 | ABS / VSA | 7,5 |
| 7 | – | – |
| 8 | – | – |
| 9 | Fuel pump | 20 |
| 10 | VB SOL 2 | 10 |
| 11 | Metre | 7,5 |
| 12 | ACG | 15 |
| 13 | SRS | 10 |
| 14 | – | 10 |
| 15 | Daylight | 7,5 |
| 16 | A / C | 7,5 |
| 17 | Accessories, key, lock | 7,5 |
| 18 | Accessory | 7,5 |
| 19 | Sliding left electric seat | 20 |
| 20 | Moonroof | 20 |
| 21 | Left electric reclining seat | 20 |
| 22 | Rear left power window | 20 |
| 23 | Front accessory power socket | 15 |
| 24 | Front left power window | 20 |
| 25 | Left door lock | 15 |
| 26 | Front left fog light | 10 |
| 27 | Left small lights (external) | 10 |
| 28 | Left high beam | 10 |
| 29 | TPMS | 7,5 |
| 30 | Left dipped beam | 15 |
| 31 | – | – |
| 32 * 3 | DIODE ST MG *, * 1 | 7,5 |
| Stop *, * 2 | 7,5 | |
| 33 * 3 | STRLD * | 7,5 |
| * 1: 4-cylinder models * 2: 6-cylinder models * 3: additional fuse box |
||
Interior fuse box (passenger side)
| Number | Protected circuit | Rating in amperes [A]. |
| 1 | Right high beam | 10 |
| 2 | Small lights on the right side (exterior) | 10 |
| 3 | Right front fog light | 10 |
| 4 | Right dipped headlight | 15 |
| 5 | – | – |
| 6 | Interior lights | 7,5 |
| 7 | – | – |
| 8 | Reclining front passenger seat | 20 |
| 9 | Electrically sliding passenger seat | 20 |
| 10 | Right side door lock | 10 |
| 11 | Rear right power window | 20 |
| 12 | WISE* | 10 |
| 13 | Passenger windshield | 20 |
| 14 | – | – |
| 15 | Audio amplifier | 20 |
| 16 | Accessory power socket (Cargo) | 15 |
| 17 | – | – |
| 18 | Lumbar power * | 7,5 |
| 19 | Seat warmer * | 15 |
| 20 | – | – |
| 21 | – | – |
| 22 | – | – |
| *: Not available on all models | ||
WARNING: Terminal and wire harness assignments for individual connectors will vary depending on vehicle equipment level, model and market.
