The Citroen DS3 from 2009-2013 has two main fuse boxes: one below the dashboard and one in the engine compartment next to the battery. In addition to the basic F1-F17 positions, the passenger compartment also contains the FH36-FH40 optional-equipment fuse group. MAXI fuses protecting high-current circuits are located beneath the engine-bay fuse box.
The layout is used on cars with VTi and THP petrol engines as well as diesel engines, so some fuse functions vary with powertrain and equipment. Pay particular attention to FH40 – owner’s manuals from different production periods list either 30 A or 40 A. Do not increase the fuse rating based only on an online table; the rating specified for the actual vehicle is the deciding factor.
For cars after the later changes, see the separate Citroen DS3 FL from 2014 fuse guide.
Contents
- Fuse box locations
- Passenger compartment fuse box
- Additional FH36-FH40 fuses
- F1-F17 passenger compartment fuses
- Engine compartment fuse box
- MAXI fuses
- Relays and BSI/BSM modules
- FAQ
Fuse box locations
On left-hand-drive cars, the passenger compartment fuse box is located in the lower left-hand part of the dashboard. To access it, unclip and remove the cover. On right-hand-drive cars, the fuse box is located in the passenger glove box.
The second fuse box is located in the engine compartment, close to the battery on the left-hand side. MAXI protection is also located below the main module. Because these are high-current circuits, the manufacturer recommends that work on MAXI fuses be carried out by a qualified workshop.
Passenger compartment fuse box

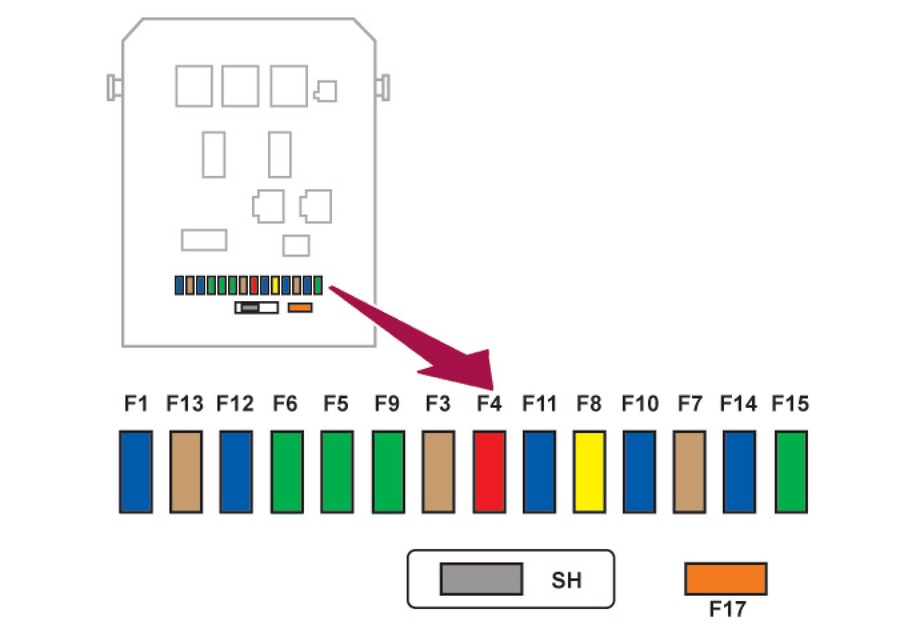

The large diagram below shows the fuse box itself rather than an entire owner’s manual page. It clearly shows the basic fuse numbering and the additional FH section.
The DS3 shares some electrical-system solutions with the Citroen C3 from 2009. This also applies to the design of some BSI/BSM modules, but the fuse numbers for the two models should not be used interchangeably without checking the correct table.
Additional FH36-FH40 fuses
| Fuse | Rating [A] | Function |
|---|---|---|
| FH36 | 5 | Trailer wiring relay module |
| FH37 | – | Unused |
| FH38 | 20 | Hi-Fi amplifier |
| FH39 | 20 | Heated front seats – if equipped |
| FH40 | 30 / 40 | Trailer wiring relay module – rating depends on electrical-system version |
FH37 is the correct designation for the unused position – the old version of the article incorrectly showed “FH3”.
For FH40, the documentation is not identical across the whole 2009-2013 production period. One earlier manual lists 30 A, while manuals for later vehicles, including 2011 and 2013, list 40 A. Check the rating assigned to the fuse box in the specific vehicle before replacement. Do not replace a 30 A fuse with a 40 A fuse simply because a later version uses the higher rating.
F1-F17 passenger compartment fuses
| Fuse | Rating [A] | Function |
|---|---|---|
| F1 | 15 | Rear window wiper |
| F2 | – | Unused |
| F3 | 5 | Airbag and seat-belt pretensioner control unit |
| F4 | 10 | Air conditioning, clutch switch, electrochromic mirror, diesel particulate-filter pump, diagnostic connector, diesel airflow meter |
| F5 | 30 | Power-window switch panel, passenger-window control, front window regulator |
| F6 | 30 | Driver’s window-regulator motor |
| F7 | 5 | Interior lighting, glove-box lighting |
| F8 | 20 | Multifunction display, radio, navigation system, alarm control unit, alarm siren |
| F9 | 30 | 12 V socket, portable navigation-holder supply |
| F10 | 15 | Steering-wheel controls |
| F11 | 15 | Ignition switch, diagnostic connector, automatic-transmission control unit |
| F12 | 15 | Rain and light sensor, trailer wiring relay module |
| F13 | 5 | Main brake-light switch, engine relay module |
| F14 | 15 | Parking sensors, airbag control unit, instrument cluster, automatic climate control, USB Box, Hi-Fi amplifier |
| F15 | 30 | Central locking |
| F16 | – | Unused |
| F17 | 40 | Heated rear window and heated exterior mirrors |
| SH | – | PARC / transport-mode shunt |
F9 is the main fuse for the 12 V socket. If the heated rear window and both mirrors stop working, F17 is a good first check because all of these consumers are protected by the same 40 A fuse.
Engine compartment fuse box
The under-hood fuse box is located next to the battery. In addition to engine circuits, it protects the starter, power steering, ABS/ESP, blower, wipers and the individual high- and low-beam headlights.

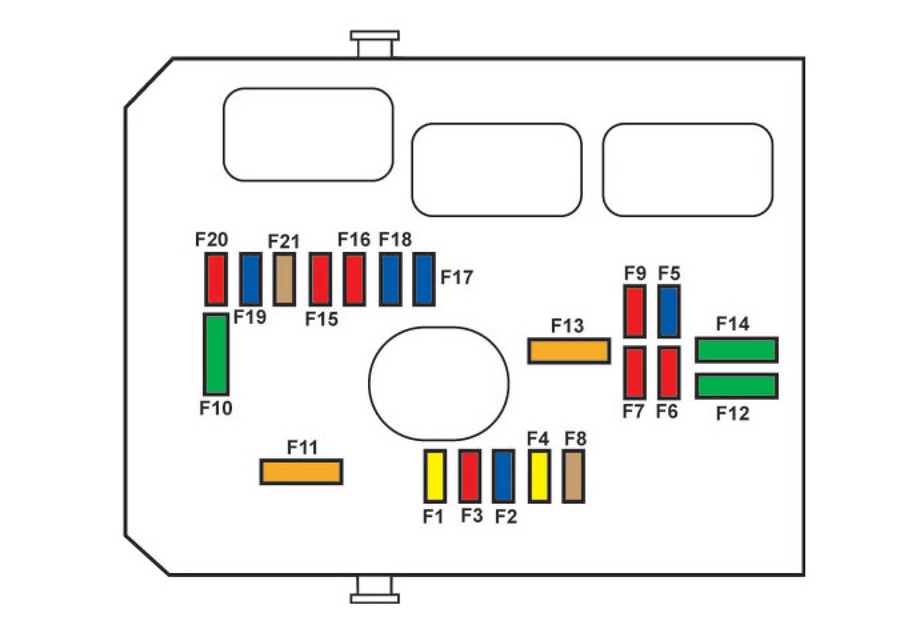

The large diagram below shows the module itself and makes F1-F21 easy to identify without relying on a small section of a scanned owner’s manual page.
| Fuse | Rating [A] | Function |
|---|---|---|
| F1 | 20 | Engine control unit supply, radiator-fan control relay, main engine-control relay, diesel injection pump |
| F2 | 15 | Horn |
| F3 | 10 | Front and rear washer pump |
| F4 | 20 | Front LED lamps / LED daytime running lights |
| F5 | 15 | Diesel fuel heating, particulate-filter additive pump, diesel airflow meter; crankcase-breather heating and solenoids – VTi |
| F6 | 10 | ABS/ESP control unit, additional brake-light switch |
| F7 | 10 | Electric power steering, automatic transmission |
| F8 | 25 | Starter control |
| F9 | 10 | Diesel switching and protection module |
| F10 | 30 | Diesel fuel and breather heating; VTi fuel pump; injectors and ignition coils on petrol engines |
| F11 | 40 | Heating and air-conditioning blower |
| F12 | 30 | Windshield wipers – low and high speed |
| F13 | 40 | BSI module power supply with ignition on |
| F14 | 30 | Valvetronic system supply – VTi engines |
| F15 | 10 | Right high-beam headlight |
| F16 | 10 | Left high-beam headlight |
| F17 | 15 | Left low-beam headlight |
| F18 | 15 | Right low-beam headlight |
| F19 | 15 | Oxygen sensors and solenoids – VTi; solenoids and EGR – diesel |
| F20 | 10 | Pumps, controlled thermostat – VTi; variable-timing solenoid – THP; water-in-fuel sensor – diesel |
| F21 | 5 | Fan-control supply, ABS/ESP, turbocharger-system pump – THP |
Separate F15-F18 headlight fuses make diagnosis easier: every high- and low-beam headlight has its own position. If only one headlight fails, you can check its fuse without disturbing the remaining lighting circuits.
MAXI fuses
High-current protection is located below the main engine-bay fuse box. Servicing these fuses differs from replacing ordinary F1-F21 fuses.
| Fuse | Rating [A] | Function |
|---|---|---|
| MF1 | 60 | Radiator-fan assembly |
| MF2 | 30 | ABS/ESP pump |
| MF3 | 30 | ABS/ESP solenoid valves |
| MF4 | 60 | BSI module power supply |
| MF5 | 60 | BSI module power supply |
| MF6 | 30 | Additional radiator-fan assembly – THP |
| MF7 | 80 | Dashboard fuse-box power supply |
| MF8 | – | Unused |
The old article had incomplete or incorrect MF6 and MF7 values. For this configuration, the documentation gives MF6 as 30 A and MF7 as 80 A.
MAXI fuses protect the main electrical circuits. The manufacturer recommends that MF1-MF8 work be carried out by a dealer or qualified workshop. Do not replace them with fuses of a different rating.
Relays and BSI/BSM modules
The DS3 owner’s manual does not provide one separate R1/R2/R3 relay table for every engine version. Some relays are integrated into the under-hood BSM fuse box and the passenger-compartment BSI module, with configuration depending on engine and equipment.
The tables do, however, identify some relay-related circuits: under-hood F1 includes the main engine-control relay and fan control, passenger-compartment F13 supplies the engine relay module, and FH36, FH40 and F12 are associated with trailer wiring.
FAQ – Citroen DS3 2009-2013
Which fuse is for the 12 V socket?
The 12 V socket is protected by F9 30 A in the dashboard fuse box.
Which fuse is for the starter?
Starter control is protected by F8 25 A in the engine compartment fuse box.
Which fuse is for the heated seats?
If the car is equipped with heated seats, their circuit is assigned to FH39 20 A in the additional passenger-compartment fuse section.
Which fuse is for the radio?
The audio system, multifunction display, radio-navigation system and alarm system are assigned to F8 20 A in the passenger-compartment fuse box.
Which fuses are for the low-beam headlights?
The left low-beam headlight is protected by F17 15 A, and the right one by F18 15 A in the engine compartment fuse box.
Which fuses are for the high-beam headlights?
The right high-beam headlight uses F15 10 A, while the left uses F16 10 A.
Which fuse is for the rear wiper?
The rear wiper is protected by F1 15 A in the dashboard fuse box.
Why is FH40 rated at 30 A in some diagrams and 40 A in others?
Different documentation editions and trailer-wiring configurations were used during DS3 production. An older manual lists FH40 30 A, while documentation for later cars lists 40 A. Use exactly the rating specified for the fuse box in the particular vehicle.
