The Citroen DS3 facelift introduced in 2014 retained two main fuse boxes: one in the passenger compartment and one in the engine bay. A group of MAXI fuses for high-current circuits is also located under the hood.
The information below applies to the Citroen DS3 FL from 2014 to 2016. Several VTi and THP petrol engines as well as diesel engines were offered during this period, so not every position is used on every vehicle. Minor differences also occur between model years, particularly in the additional FH36-FH40 section and the MAXI-fuse group.
If the car is from 2009-2013, use the earlier guide: Citroen DS3 2009-2013 fuses.
Contents
- Fuse box locations
- Passenger compartment fuse box diagram
- FH36-FH40 fuses
- F1-F17 passenger compartment fuses
- Engine compartment fuse box
- MAXI fuses
- Differences compared with the 2009-2013 DS3
- Relays and BSI/BSM modules
- FAQ
Fuse box locations
On left-hand-drive cars, the passenger compartment fuse box is located in the lower left-hand part of the dashboard. To access it, unclip the side section of the cover and remove it completely.
On right-hand-drive versions, the module is located inside the passenger glove box.
The second fuse box is located in the engine compartment next to the battery, on the left-hand side. The same assembly contains fuses F1-F21 and the MAXI protection.
Passenger compartment fuse box diagram

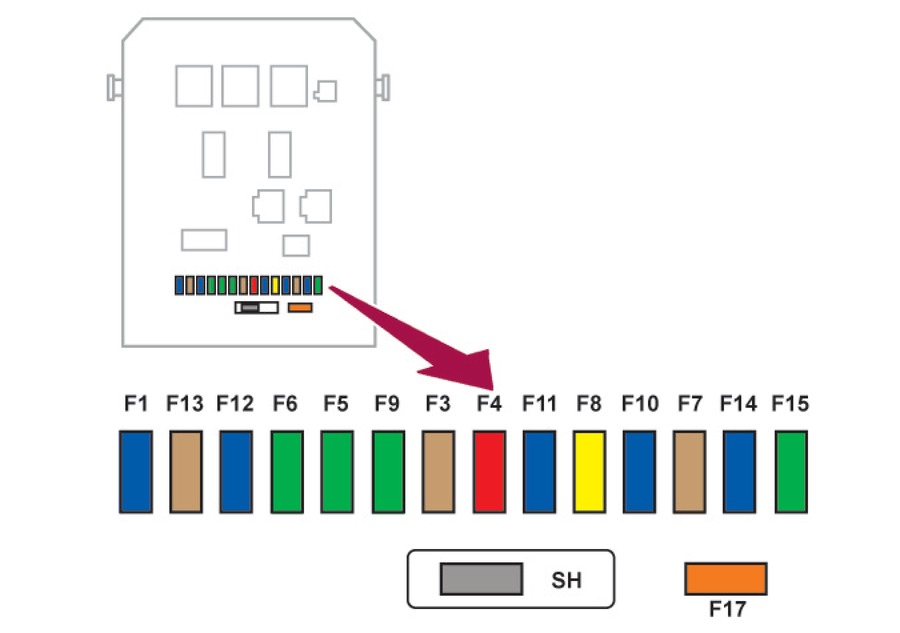

The drawing below shows the fuse-box module itself rather than a complete owner’s manual page. The F1-F17 numbering, SH shunt and additional FH positions remain readable even on a smaller screen.
The DS3 uses electrical solutions related to the Citroen C3 from 2009. This does not mean the fuse numbers can be used interchangeably; differences result from equipment and body-version details, among other factors.
Additional FH36-FH40 fuses
This part of the electrical system requires particular care because the assignment of some positions changed during production.
| Fuse | Rating [A] | Function |
|---|---|---|
| FH36 | 5 | Trailer wiring relay module |
| FH37 | – | Unused |
| FH38 | 20 | Hi-Fi amplifier |
| FH39 | – / 20 | Unused on most 2014-2015 facelift configurations; 20 A for heated seats on some later versions |
| FH40 | 30 / 40 | Trailer wiring relay module – rating depends on model year and electrical-system version |
For the 2014 model year, documentation lists FH40 as 30 A, while later vehicles may use 40 A. Never increase the fuse rating based only on an online diagram. Use the value specified for the actual fuse box and vehicle documentation.
In the old article, FH37 was mistakenly labelled “FH3”. The correct designation is FH37.
F1-F17 passenger compartment fuses
| Fuse | Rating [A] | Function |
|---|---|---|
| F1 | 15 | Rear window wiper |
| F2 | – | Unused |
| F3 | 5 | Airbag and seat-belt pretensioner control unit |
| F4 | 10 | Air conditioning, clutch switch, electrochromic mirror, diesel particulate-filter pump, diagnostic connector, diesel airflow meter |
| F5 | 30 | Power-window switch panel, passenger-window control, front window regulators |
| F6 | 30 | Driver’s window-regulator motor |
| F7 | 5 | Interior and glove-box lighting |
| F8 | 20 | Multifunction display, audio system, radio-navigation system, alarm control unit, alarm siren |
| F9 | 30 | 12 V socket, portable navigation-holder supply |
| F10 | 15 | Steering-wheel controls |
| F11 | 15 | Ignition switch, diagnostic connector, automatic-transmission control unit |
| F12 | 15 | Rain and light sensor, trailer wiring relay module |
| F13 | 5 | Main brake-light switch, engine relay module |
| F14 | 15 | Parking sensors, airbag control unit, instrument cluster, automatic climate control, USB Box, Hi-Fi amplifier |
| F15 | 30 | Central locking |
| F16 | – | Unused |
| F17 | 40 | Heated rear window and heated exterior mirrors |
| SH | – | PARC / transport-mode shunt |
If the heated rear window and both mirrors stop working at the same time, one of the first items to check is F17 40 A. The 12 V socket has a separate F9 30 A fuse.
Engine compartment fuse box

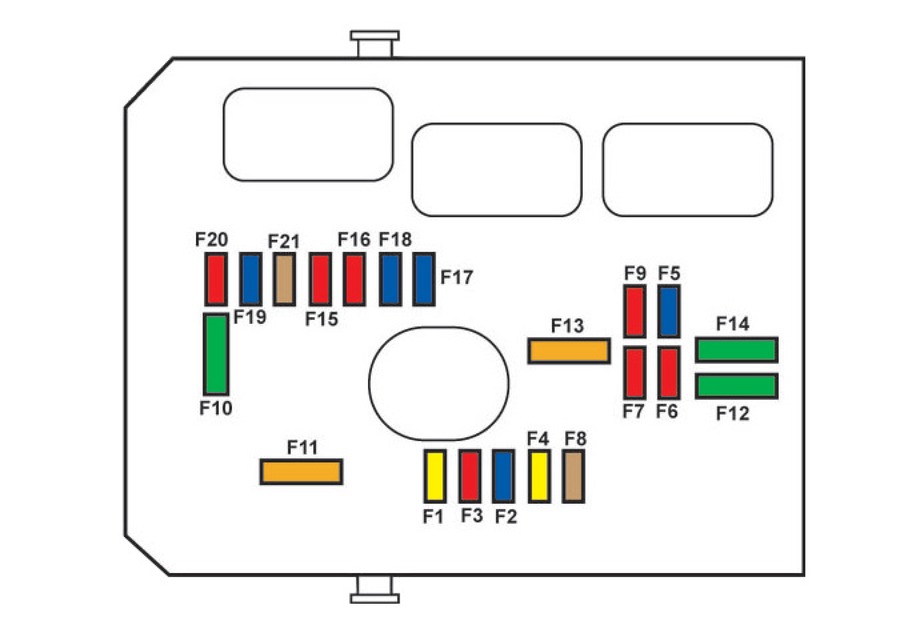

The diagram below shows the physical layout of fuses F1-F21 and the MAXI section. It is much clearer than a full engine-bay photograph or a complete owner’s manual page.
| Fuse | Rating [A] | Function |
|---|---|---|
| F1 | 20 | Engine control unit supply, radiator-fan control relay, main engine-control relay, diesel injection pump |
| F2 | 15 | Horn |
| F3 | 10 | Front and rear washer pump |
| F4 | 20 | LED lamps / LED daytime running lights |
| F5 | 15 | Diesel fuel heating, FAP additive pump, airflow meter and EGR; crankcase-breather heating and solenoids on VTi engines |
| F6 | 10 | ABS/ESP control unit, additional brake-light switch |
| F7 | 10 | Electric power steering, automatic transmission |
| F8 | 25 | Starter control |
| F9 | 10 | Diesel switching and protection module |
| F10 | 30 | Diesel fuel and breather heating; VTi fuel pump; injectors and ignition coils on petrol engines |
| F11 | 40 | Heating and air-conditioning blower |
| F12 | 30 | Windshield wipers – low and high speed |
| F13 | 40 | BSI module power supply with ignition on |
| F14 | 30 | Valvetronic system supply – VTi engines |
| F15 | 10 | Right high-beam headlight |
| F16 | 10 | Left high-beam headlight |
| F17 | 15 | Left low-beam headlight |
| F18 | 15 | Right low-beam headlight |
| F19 | 15 | Oxygen sensors and solenoids – VTi; solenoids and EGR – diesel |
| F20 | 10 | Pumps and controlled thermostat – VTi; variable-timing solenoid – THP; water-in-fuel sensor – diesel |
| F21 | 5 | Radiator-fan control, ABS/ESP, turbocharger-system pump – THP |
If only one headlight fails, note the separate F15-F18 protection. The right and left high- and low-beam headlights do not share one common fuse.
MAXI fuses
The MAXI fuses are part of the engine-bay fuse-box assembly and protect high-current circuits. They are not intended for casual replacement during routine diagnosis.
| Fuse | Rating [A] | Function |
|---|---|---|
| MF1 | 60 | Radiator-fan assembly |
| MF2 | 30 | ABS/ESP pump |
| MF3 | 30 | ABS/ESP solenoid valves |
| MF4 | 60 | BSI module power supply |
| MF5 | 60 | BSI module power supply |
| MF6 | 20 / 30 | Additional radiator fan on THP versions – rating depends on module configuration |
| MF7 | depending on version | Main dashboard fuse-box supply |
| MF8 | – | Unused |
Different values are found in the documentation for MF6 and MF7. On some DS3 FL tables MF6 is 20 A, while other module versions use 30 A. Later documentation may also list MF7 as 80 A. Because of the nature of these circuits, do not select a MAXI fuse solely from an online table. The correct rating must match the markings on the specific BSM fuse box and vehicle version.
The manufacturer recommends that work on MAXI fuses be carried out by a dealer or qualified workshop.
Key differences compared with the DS3 2009-2013
The basic fuse-box arrangement remained similar, but the facelift introduced differences in the additional FH section. The most important concerns FH39: on many facelifted cars this position is unused, whereas on some other configurations it is assigned to heated seats.
FH40 for the trailer wiring module also changes – 2014 documentation lists 30 A, while later documentation may list 40 A.
A 2014 car should therefore not automatically use the table for a 2015 or 2016 vehicle simply because the fuse box looks identical.
Relays and BSI/BSM modules
The DS3 FL owner’s manual does not provide one complete R1/R2/R3 relay table for every engine version. Some relays are integrated into the engine-bay BSM module and the passenger-compartment BSI module.
The manufacturer’s tables do identify some relationships: F1 includes the main engine-control relay and radiator-fan control, passenger-compartment F13 supplies the engine relay module, and FH36, FH40 and F12 are associated with trailer wiring.
FAQ – Citroen DS3 FL 2014-2016
Which fuse is for the 12 V socket?
The 12 V socket is protected by F9 30 A in the dashboard fuse box.
Which fuse is for the starter?
Starter control is assigned to F8 25 A in the engine compartment fuse box.
Which fuse is for the radio?
The radio, navigation, multifunction display and part of the alarm system are supplied through F8 20 A in the passenger-compartment fuse box.
Which fuse is for the heated rear window?
The heated rear window and exterior mirrors are protected by F17 40 A in the passenger-compartment fuse box.
Which fuses are for the low-beam headlights?
The left low-beam headlight uses F17 15 A, and the right one uses F18 15 A in the under-hood fuse box.
Which fuses are for the high-beam headlights?
The right high-beam headlight is protected by F15 10 A, and the left one by F16 10 A.
Is FH39 the heated-seat fuse?
Not on every version. On many 2014-2015 DS3 FL cars, FH39 is marked unused. Other later configurations use FH39 20 A for the heated seats. Check the markings on the actual fuse box.
Why is FH40 rated at either 30 A or 40 A?
Different trailer-wiring configurations were used. The 2014 documentation lists FH40 30 A, while later tables may show 40 A. Do not increase the fuse rating yourself.
Does the 2009-2013 DS3 diagram fit the facelifted version?
The basic fuse layout is very similar, but there are differences in the additional FH section and MAXI-fuse configurations. For a facelifted car, use the table matching the correct model year and equipment.
