The first-generation Dacia Logan I (L90, 2005-2013) has a fuse box at the driver’s side edge of the dashboard and another near the battery under the bonnet. Depending on production date, 1.4/1.6 petrol or 1.5 dCi diesel engine and equipment, cars may feature two fundamentally different engine compartment distribution layouts. They are shown separately below to prevent mixing fuse numbers.
The interior table covers 31 labelled entries (including grouped spare positions), and there are separate engine-bay type 1 and type 2 sections. Fuse and relay allocations differ between configurations, so identify your actual engine-bay housing before selecting any protection element.
Where are Dacia Logan I fuse boxes?
Cabin: open the driver’s door and remove the fuse-cover panel on the left end of the dashboard. Under the bonnet: the fuse and relay units are by the battery. Some vehicles contain several labelled modules such as 597A, 597B, 597C and 597D instead of the single type 1 assembly. Always switch off the ignition and compare the panel cover with the chart.

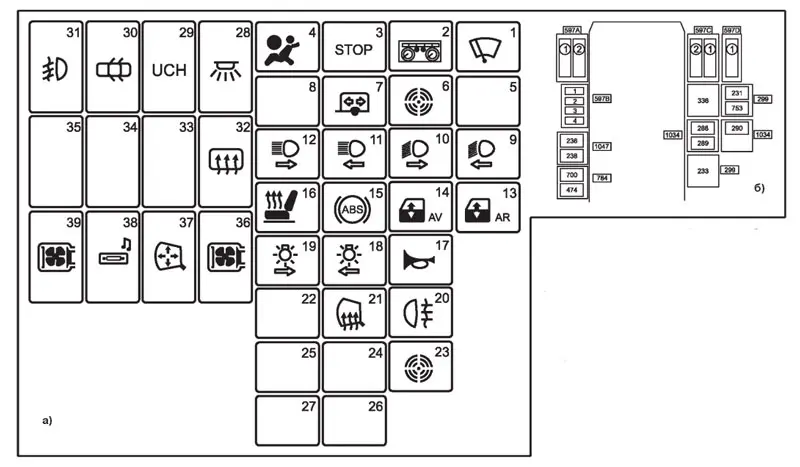

Dacia Logan I interior fuse panel F01-F39
Only positions assigned a function in the documented source are listed. Some spare sockets are grouped as F05-F08 and F13-F14 is used for electric windows depending on equipment. F38 (10 A) protects the cigarette lighter and ignition-switched radio feed, whereas permanent radio supply is listed on F28 (15 A).
| Position | Rating [A] / type | Protected circuit / function |
|---|---|---|
| F01 | 20 | Front wipers and rear window defogger relay coil |
| F02 | 5 | Instrument cluster, fuel pump relay K5 and ignition-switched ECU feed |
| F03 | 20 | Brake and reverse lamps plus windscreen washer pump |
| F04 | 10 | Airbag controller, indicators, OBD connector and immobiliser |
| F05-F08 | – | Spare or unused in this configuration |
| F09 | 10 | Left dipped-beam lamp, warning lamp and headlamp washer pump |
| F10 | 10 | Right dipped-beam lamp |
| F11 | 10 | Left high-beam headlamp and main-beam indicator |
| F12 | 10 | Right high-beam headlamp |
| F13-F14 | 30 | Front and rear power windows, depending on equipment |
| F15 | 10 | ABS system |
| F16 | 15 | Front heated seat switches |
| F17 | 15 | Horn |
| F18 | 10 | Left sidelights, number plate lights and cabin backlighting |
| F19 | 7.5 | Right sidelights and glovebox lighting |
| F20 | 7.5 | Rear fog lamp and telltale |
| F21 | 5 | Heated exterior mirrors |
| F22-F23 | – | Spare or unused positions |
| F24 | 5 | Power steering control |
| F25 | 5 | LPG/CNG installation, if equipped |
| F26 | 5 | Airbags and seat belt pretensioners |
| F27 | 20 | Rear wiper, wiper switch, headlamp washers and reversing lamps |
| F28 | 15 | Cabin and luggage compartment lighting and permanent radio feed |
| F29 | 15 | Hazard warning, indicators, central locking, OBD and intermittent wiper function |
| F30 | 20 | Main central locking power supply |
| F31 | 15 | Front fog lamp relay control |
| F32 | 30 | Heated rear window relay circuit |
| F36 | 30 | Heater blower relay supply |
| F37 | 5 | Power mirror adjustment |
| F38 | 10 | Cigarette lighter and ignition-switched radio feed |
| F39 | 30 | Heater blower relay coil |
Dacia Logan engine compartment fuse box: type 1
This unit uses six F01-F06 positions. It protects ignition, cooling fan feed, engine management, the fuel pump relay and passenger-compartment fuse supplies. Do not use these F numbers to identify similarly labelled slots in the distributed type 2 modules.
| Position | Rating [A] / type | Protected circuit / function |
|---|---|---|
| F01 | 60 | Ignition switch, accessory feed and lighting switch |
| F02 | 30 | Radiator cooling fan relay feed on cars without air conditioning |
| F03 | 25 | Fuel pump relay K5 and main engine management power supply |
| F04 | 5 | Permanent ECU feed and main engine control relay coil |
| F05 | 15 | Reserve or unused position |
| F06 | 60 | Main passenger compartment fuse panel supply |
Dacia Logan type 1 engine relays K1-K8
Eight K-labelled positions may control the cabin blower, radiator fan, air conditioning, injection system, fuel pump, headlamp washers and front fog lights. Exact relay installation depends on whether features such as air conditioning are fitted.
| Position | Rating [A] / type | Protected circuit / function |
|---|---|---|
| K1 | Relay | Heater blower motor |
| K2 | Relay | Radiator cooling fan |
| K3 | Relay | Low-speed cooling fan on air-conditioned versions |
| K4 | Relay | Air-conditioning compressor electromagnetic clutch |
| K5 | Relay | Fuel pump and ignition coils |
| K6 | Relay | Injectors, heated oxygen sensor, EVAP solenoid and engine equipment relays |
| K7 | Relay | Headlamp washer pump |
| K8 | Relay | Front fog lamps |
Dacia Logan engine compartment fuse box: type 2
This alternate installation uses separately labelled assemblies including 597A, 597B, 597C and 597D. 597A-F1 and 597B-F1 are different positions. Full designations are preserved, along with individual circuits and additional relay references such as 1047-236.
| Position | Rating [A] / type | Protected circuit / function |
|---|---|---|
| 597A-F1 | 60 | Alarm, lighting switch and daytime running light control |
| 597A-F2 | 60 | Lighting switch and dashboard fuse panel |
| 597B-F1 | 30 | Relay plate electrical supply |
| 597B-F2 | 25 | Injection system relay |
| 597B-F3 | 5 | Injection controller and injection relay |
| 597C-F1 | 50 | ABS control module |
| 597C-F2 | 25 | Secondary ABS circuit |
| 597D-F1 | 40 | High-speed cooling fan relay |
| 299-231 | 20 | Front fog lamps |
| 299-753 | 20 | Headlamp washers |
| 784-474 | Relay | Air-conditioning compressor clutch |
| 784-700 | Relay | Cooling fan low speed |
| 1034-288/289/290 | Relays | Daytime running lamps |
| 1047-236 | Relay | Fuel pump |
| 1047-238 | Relay | Injection system lockout |
| 233 | Relay | Heater blower |
| 236 | Relay | High-speed radiator cooling fan |
Which fuses protect the cigarette lighter, radio, wipers and headlights?
Cigarette lighter / 12 V socket: cabin F38 (10 A). Radio: cabin F28 (15 A) for permanent supply and F38 (10 A) for ignition-switched supply.
Front wipers: cabin F01 (20 A). Rear wiper: cabin F27 (20 A) on fitted models. Horn: cabin F17 (15 A). Heater blower: cabin F36 and F39 (both 30 A), with relay K1 on type 1 layouts.
Low-beam headlights: cabin F09 (10 A) left and F10 (10 A) right. High beams: F11 and F12 (10 A each). A no-start fault should also be checked against the actual engine-bay distribution layout and its fuel-pump/main ECU relays, not just the cabin chart.
The second-generation Dacia Sandero II fuse diagrams use another panel arrangement; neither that model nor the Logan MCV should be assumed to have identical fuse populations.
Dacia Logan I fuse box FAQ
Which fuse protects the cigarette lighter?
Dashboard F38, rated at 10 A, in the documented 2005-2013 layout.
Where is the cabin fuse panel?
Behind the cover at the driver’s end of the dashboard, accessible when the door is open.
Is engine-bay F01 always the same fuse?
No. Type 1 and type 2 fuse blocks have different locations and function labels; do not mix their numbering.
Which fuse protects the front wipers?
Cabin F01 (20 A) in the documented configuration.
Replace only with the correct fuse rating and type. Repeated fuse failure calls for diagnosis of the protected circuit.
