The Peugeot 206 (2000-2002) has two principal fuse box locations: in the engine compartment near the 12 V battery and inside the cabin below the driver’s dashboard. Main MAXI fuses protect high-current systems including ABS and the Body Systems Interface (BSI). This guide preserves 41 documented entries across engine-bay, MAXI and cabin fuse tables.
The reference follows the June 2002 Peugeot 206 handbook, with clearly marked differences in certain earlier 2000-2002 arrangements. Equipment and engine options including 1.1, 1.4, 1.6 and diesel variants can alter which sockets are occupied. Use the fuse label for your exact vehicle and avoid transferring assignments from the later 2003-2010 model.
Where are the Peugeot 206 fuse boxes?
Engine compartment: beside the battery beneath a clipped plastic lid. Switch off ignition before opening it; this panel contains engine control, fuel, headlights, washer and cooling supplies.
Passenger compartment: behind the lower dashboard cover on the driver’s side. Release the quarter-turn fastener (a coin can be used), then check the inside lid label. Peugeot fitted a fuse puller and spare fuses on the reverse of the cover for some versions.

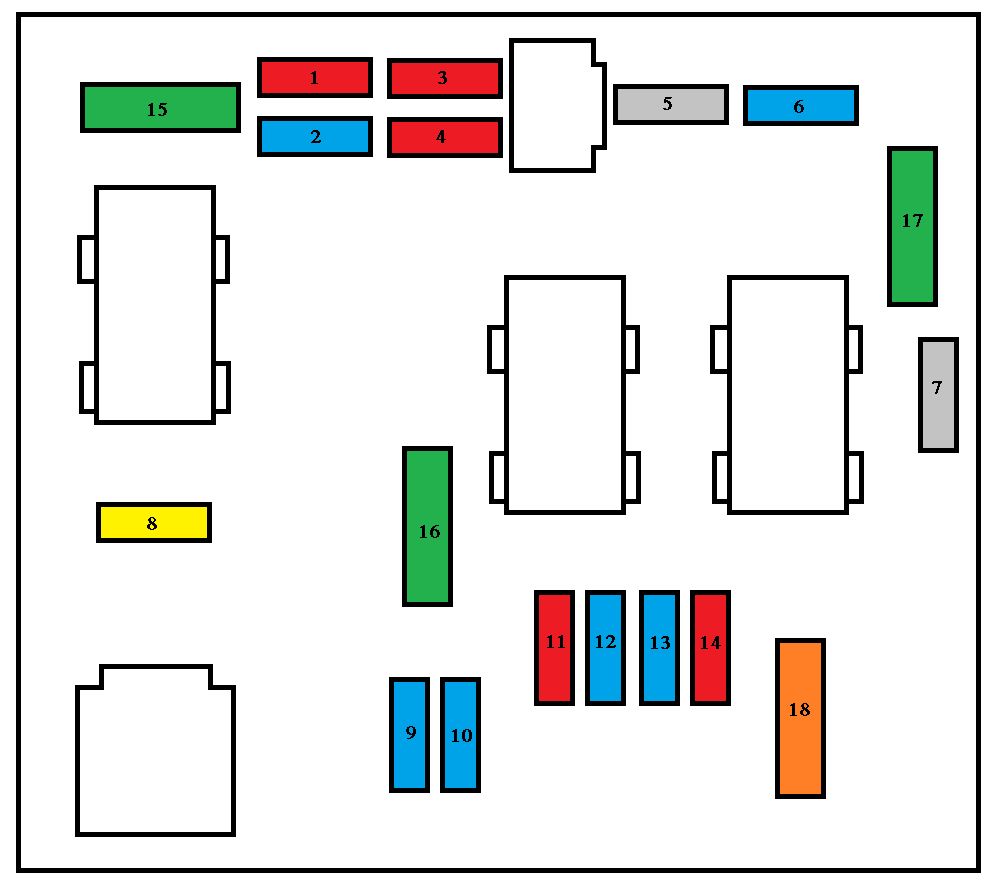

Peugeot 206 2000-2002 – engine fuse panel
These 17 described positions come from the 2002 reference. The illustration is a larger version of the original distribution drawing. Position 7 requires care: the June 2002 guide marks it unused, but some earlier configurations assign a 20 A headlamp washer pump. Do not insert a fuse based on a different year.
| Position | Rating [A] / type | Protected circuit / function |
|---|---|---|
| 1 | 10 | Diesel preheating module, water-in-fuel sensor, reversing light switch, vehicle speed sensor and airflow meter, depending on engine |
| 2 | 15 | EVAP purge valve and fuel pump |
| 3 | 10 | ABS control module |
| 4 | 10 | Automatic gearbox controller and engine control unit |
| 5 | – | Unused position |
| 7 | – / 20 | Unused in the June 2002 handbook; on certain earlier layouts, headlamp washer pump (20 A). Confirm the exact vehicle |
| 8 | 20 | Cooling fan relay, engine controller, diesel equipment and injection system |
| 9 | 15 | Left dipped-beam headlamp |
| 10 | 15 | Right dipped-beam headlamp |
| 11 | 10 | Left high-beam headlamp |
| 12 | 15 | Right high-beam headlamp |
| 13 | 15 | Horn |
| 14 | 10 | Front and rear window washer pumps |
| 15 | 30 | Injectors, oxygen sensor, ignition coils, engine management and selected diesel supply circuits |
| 16 | 30 | Secondary air pump relay |
| 17 | 30 | Front windscreen wipers, high and low speeds |
| 18 | 40 | Heater and air-conditioning blower |
Peugeot 206 – MAXI high-current fuses MF1-MF8
These eight numbered high-current positions protect the cooling fan, ABS/ESP, BSI body module and main ignition supply. They are distinct from cabin positions and should not be replaced with normal mini blade fuses. Certain high-current circuits require workshop attention.
| Position | Rating [A] / type | Protected circuit / function |
|---|---|---|
| MF1 | 20 | Engine cooling fan |
| MF2 | 60 | Main ABS/ESP electrical supply |
| MF3 | 30 | Secondary ABS/ESP feed |
| MF4 | 70 | Body Systems Interface (BSI) power supply |
| MF5 | 70 | Second BSI power feed |
| MF6 | – | Unused position |
| MF7 | 30 | Ignition switch supply |
| MF8 | – | Unused position |

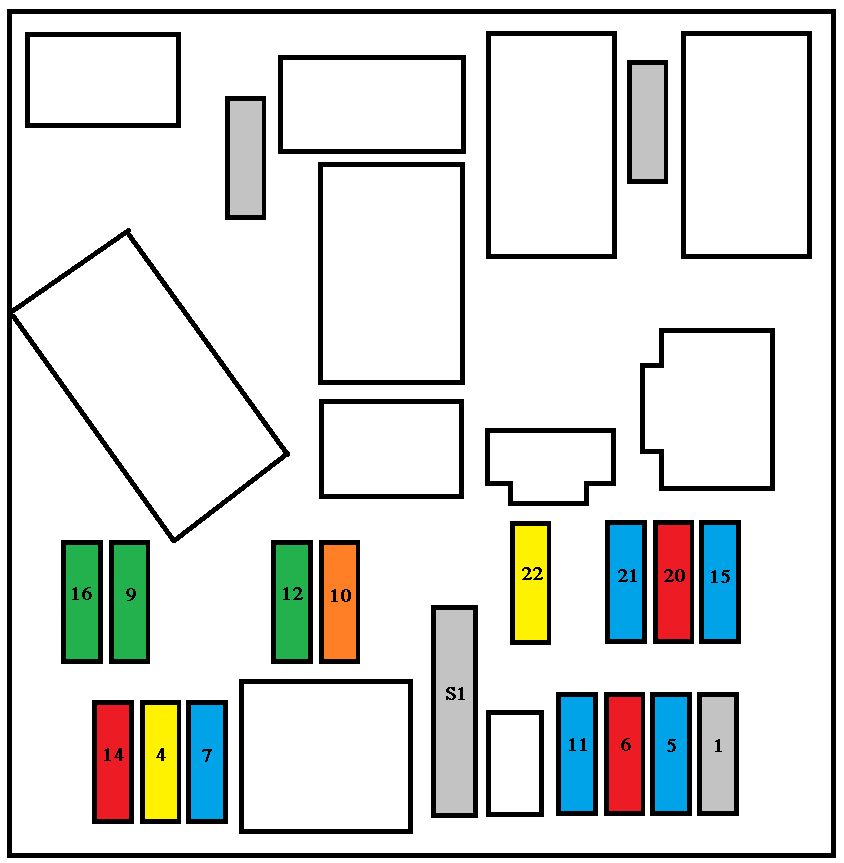

Peugeot 206 2000-2002 – passenger compartment fuse box
The manufacturer lists the installed cabin positions rather than every possible empty slot. Cabin position 22 (30 A) supplies interior lighting, the cigarette lighter and, in Peugeot 206 SW estates, the rear 12 V socket. The S1 PARC jumper is a power-configuration bridge rather than a conventional replaceable fuse.
| Position | Rating [A] / type | Protected circuit / function |
|---|---|---|
| 1 | 15 | Heated seats and alarm siren, if equipped |
| 4 | 20 | Multifunction display, navigation, luggage compartment lighting and radio |
| 5 | 15 | Automatic transmission diagnostics |
| 6 | 10 | Coolant level sensor, automatic gearbox and radio |
| 7 | 15 | Driver training controls and auxiliary alarm, if installed |
| 9 | 30 | Rear electric windows |
| 10 | 40 | Heated rear window and exterior mirrors |
| 11 | 15 | Rear window wiper |
| 12 | 30 | Front windscreen wipers and sunroof, where fitted |
| 14 | 10 | Engine fuse box feed, airbags, steering controls and rain sensor |
| 15 | 15 | Instrument cluster, display, navigation, air conditioning and radio |
| 16 | 30 | Central locking of doors, bonnet and tailgate and additional deadlocking |
| 20 | 10 | Right brake lamp |
| 21 | 15 | Left and high-level brake lamps |
| 22 | 30 | Interior and glovebox lighting, cigarette lighter and rear 12 V socket in 206 SW |
| S1 | Jumper | PARC power configuration jumper, not a fuse |
Cigarette lighter, dipped beam, radio, wipers and heated rear window
Cigarette lighter or 12 V socket: inspect cabin position 22 (30 A). A shorted socket or charger can blow a replacement fuse.
Dipped-beam headlights: engine-bay position 9 (15 A) on the left and 10 (15 A) on the right. High beams use positions 11 (10 A) left and 12 (15 A) right in the referenced chart.
Front wipers: engine-bay position 17 (30 A) supplies high/low speed. Cabin position 12 (30 A) additionally protects wiper controls and optional sunroof circuits. Rear wiper: cabin 11 (15 A).
Radio and displays: check cabin 4 (20 A), 6 (10 A) and 15 (15 A), according to the fitted radio and navigation version. Heated rear glass: cabin 10 (40 A). Fuel pump and EVAP: engine 2 (15 A) on applicable petrol cars.
Peugeot 206 fuse layout differences
Changes between early and later 206 production are particularly relevant for engine-bay fuse 7. The later Peugeot 207 and second-generation Peugeot 208 use different electrical systems. For comparison only, see the Peugeot 208 II fuse box diagrams and Peugeot 2008 II fuse guide, but never transfer their fuse numbers to the 206.
Peugeot 206 2000-2002 fuse box FAQ
Where is the cigarette lighter fuse?
Cabin fuse 22 (30 A) in the referenced 2000-2002 layout.
Which fuses protect the low-beam headlights?
Under the bonnet, number 9 (15 A) is the left dipped beam and number 10 (15 A) is the right dipped beam.
Is position 7 always a 20 A fuse?
No. It is unused in the June 2002 handbook, while some earlier arrangements use it for headlamp washers at 20 A.
Is S1 a fuse?
No. S1 is a PARC power configuration jumper and should not be treated as a regular fuse.
Use the correct fuse type and amperage specified for your particular 206. Do not substitute a higher rating when a fuse blows repeatedly.
Fuse tables: Peugeot 206 June 2002 handbook, with earlier production differences noted. Featured car photograph: Vauxford, Wikimedia Commons, CC BY-SA 4.0.
