Peugeot 207 (2006-2008) has a fuse panel behind the lower driver’s side dashboard and another covered fuse box beside the battery under the bonnet. Additional high-current MF1-MF11 supplies protect important systems. This guide includes 48 original fuse and jumper positions from the early 207 electrical configurations.
Different 1.4, 1.6, 1.6 THP and HDi engines, transmissions and equipment packages can change a fuse’s function and rating. The tables keep the year-dependent assignments separate. For example, starter control F8 may be rated 20 A or 25 A, depending on the wiring and handbook. Always confirm your fuse-box lid and original fuse, never install a higher-rated replacement.
Where are Peugeot 207 fuse boxes?
Cabin: on left-hand-drive European vehicles the panel is behind a cover in the lower left dashboard, on the driver’s side. Right-hand-drive cars can have access near the glovebox. Switch off the ignition before removing the panel cover.
Engine compartment: the covered fuse holder is beside the battery. It houses the fuel pump, starter, headlamp, wiper and engine management circuits; high-current MF links may be fitted in an additional section. Their inspection may require a workshop procedure.

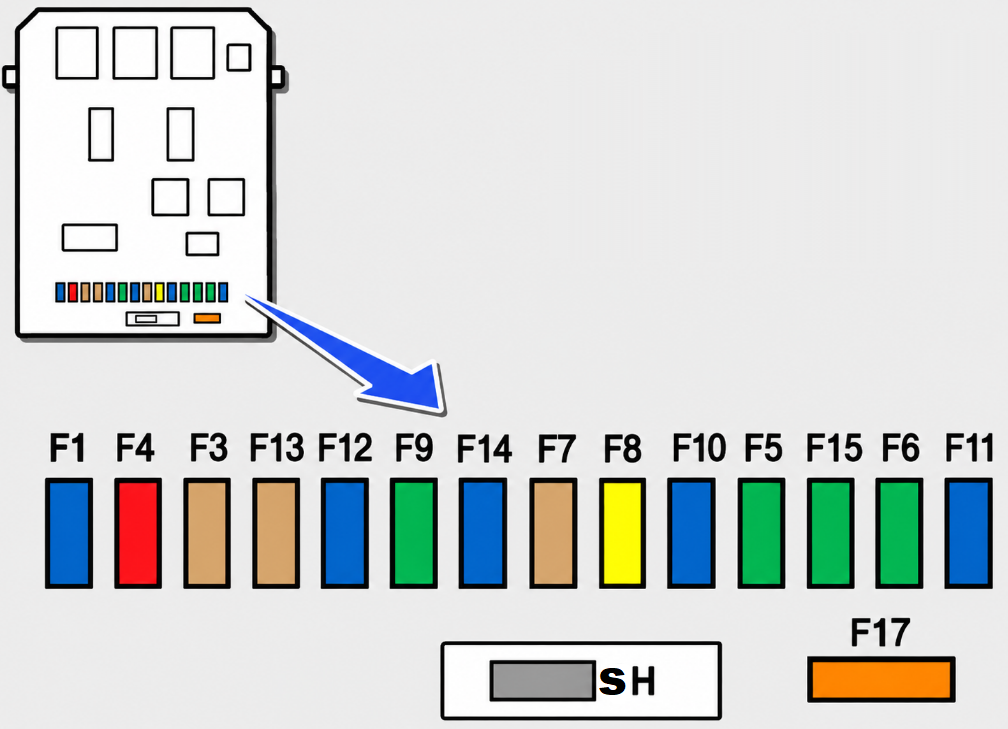

Peugeot 207 2006-2008 cabin fuses F1-F17, SH, G39 and G40
The original cabin drawing includes the ordinary numbered slots, a SH PARC power-configuration jumper and G39/G40 equipment positions. SH is not a conventional blade fuse. G39 is associated with a Hi-Fi amplifier on some 2006-2007 cars but can be unused in 2008.
| Position | Rating [A] / type | Protected circuit / function |
|---|---|---|
| F1 | 15 | Rear window wiper |
| F2 | – | Unused position |
| F3 | 5 | Airbag and seat belt pretensioner controller |
| F4 | 10 | Clutch pedal sensor, OBD diagnostic connector, auto-dimming mirror, air conditioning, steering angle sensor and diesel FAP additive pump |
| F5 | 30 | Rear power windows and sunroof; on selected 2008 cars also one-touch window circuits |
| F6 | 30 | Front power windows and electrically folding mirror supply |
| F7 | 5 | Interior and reading lamps, glovebox and sun visor lighting, clock |
| F8 | 20 | Radio, multifunction display, steering wheel controls, CD changer and multimedia |
| F9 | 30 | Front 12 V power outlet; on selected SW versions, also the rear outlet |
| F10 | 15 | Alarm siren and controller, directional headlamps |
| F11 | 15 | Diagnostic connector and ignition switch; on selected 2008 cars, automatic transmission controller |
| F12 | 15 | Rain and light sensor, amplifier, trailer wiring and driver training equipment |
| F13 | 5 | Engine fuse box, ABS relay, 2 Tronic selector and brake pedal sensor |
| F14 | 15 | Instrument panel, seatbelt warning lights, headlamp adjustment, air conditioning, hands-free kit, parking sensors and airbag system |
| F15 | 30 | Central door locking and superlocking |
| F17 | 40 | Heated rear window and exterior mirrors |
| SH | – | PARC configuration jumper, not a conventional fuse |
| G39 | 20 / – | Hi-Fi amplifier in 2006-2007; unused in some 2008 layouts |
| G40 | 20 | Driver and passenger seat heating, where fitted |

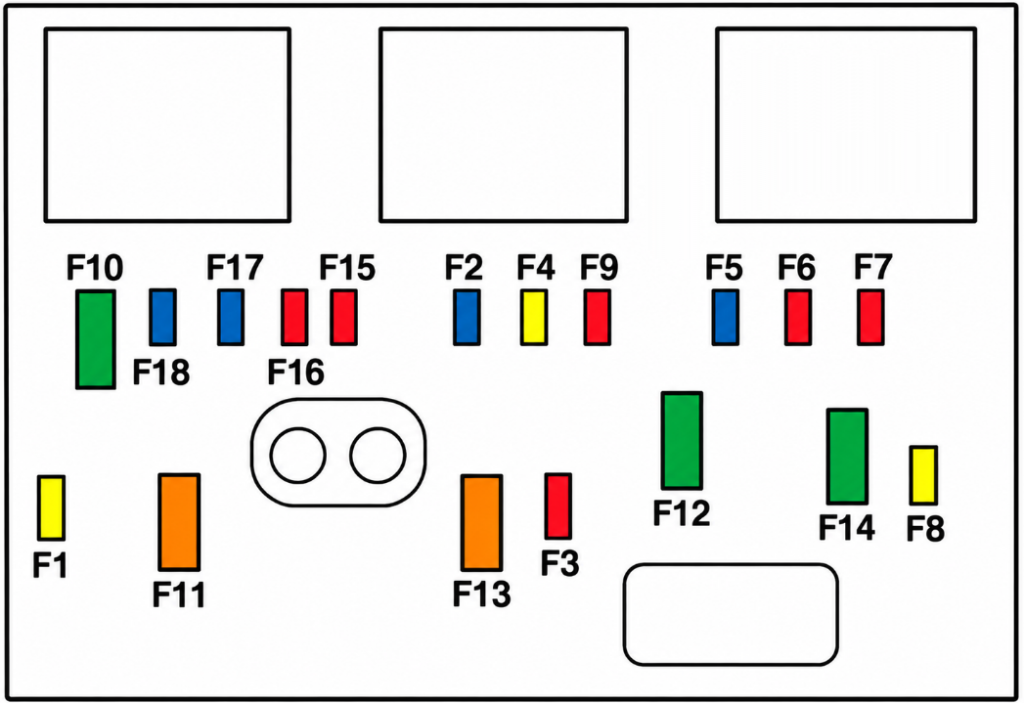

Peugeot 207 under-bonnet fuses F1-F18
The front panel protects ABS control, engine management, the fuel pump, electric steering, air-conditioning, wipers, the horn and independently protected left/right headlights. Diesel and 1.6 THP hardware does not appear in every petrol model.
| Position | Rating [A] / type | Protected circuit / function |
|---|---|---|
| F1 | 20 | Engine controller and radiator fan controls; on diesels also mass airflow meter, injection pump, water-in-fuel sensor, EGR solenoids and intake heating; on 1.6 THP selected solenoids |
| F2 | 15 | Horn |
| F3 | 10 | Front and rear windscreen washer pumps |
| F4 | 20 | Headlamp washers, if fitted |
| F5 | 15 | Petrol fuel pump; also turbocharger control on some 1.6 THP models |
| F6 | 10 | Vehicle speed sensor and automatic gearbox system |
| F7 | 10 | Electric power steering, directional headlamps and selected diesel circuits |
| F8 | 20 or 25 | Starter control, with 20 A or 25 A depending on wiring version and model-year documentation |
| F9 | 10 | ABS/ESP controller and brake pedal switch |
| F10 | 30 | Engine control actuators including coils, injectors, oxygen sensors and solenoids; on diesels also preheating |
| F11 | 40 | Cabin heater and air-conditioning blower motor |
| F12 | 30 | Front windscreen wipers, slow and fast speeds |
| F13 | 40 | Ignition-switched Body Systems Interface (BSI) power |
| F14 | 30 | Diesel fuel heater |
| F15 | 10 | Left high-beam headlamp |
| F16 | 10 | Right high-beam headlamp |
| F17 | 15 | Left dipped-beam headlamp |
| F18 | 15 | Right dipped-beam headlamp |
Starter fuse F8: a documented 20 A or 25 A specification depends on the model and wiring. Confirm the precise rating against the fuse installed in your vehicle, rather than swapping these values between versions.
Peugeot 207 MAXI fuses MF1-MF11
The MF positions are high-current links for the fan, ABS/ESP, Body Systems Interface (BSI), gearbox equipment, diesel heating and electric steering. MF6 and MF11 are associated with some 1.6 THP versions; they are not fitted identically to all models.
| Position | Rating [A] / type | Protected circuit / function |
|---|---|---|
| MF1 | 70 | Main radiator cooling fan supply |
| MF2 | 20 / 30 | ABS/ESP hydraulic pump, equipment-dependent |
| MF3 | 20 / 30 | ABS/ESP solenoid valves, equipment-dependent |
| MF4 | 60 | Body Systems Interface (BSI) supply |
| MF5 | 60 | Additional Body Systems Interface (BSI) supply |
| MF6 | 30 / – | Additional fan on 2007-2008 1.6 THP; unused in other configurations |
| MF7 | 80 | Passenger compartment fuse box power feed |
| MF8 | 30 / – | 2 Tronic gearbox control module, if fitted |
| MF9 | 80 | Diesel heating assembly |
| MF10 | 80 | Electric power steering |
| MF11 | 40 / – | Valvetronic engine motor in 1.6 THP; unused with other engines |
Common Peugeot 207 fuses
Cigarette lighter or 12 V outlet: cabin F9 (30 A). Rear wiper: cabin F1 (15 A). Front wipers: engine F12 (30 A). Windscreen washers: engine F3 (10 A).
Low-beam headlights: engine F17 (15 A) left and F18 (15 A) right. High beams: F15 and F16 (10 A each). Cabin blower: engine F11 (40 A). Petrol fuel pump: engine F5 (15 A) on the documented petrol variant.
Peugeot 207, 206 and later Peugeot models
For the older hatchback, read the Peugeot 206 fuse diagrams. Despite similarities in branding, the electrical architecture and fuse numbers differ. The much newer Peugeot 208 II also uses a separate numbering scheme.
Optional hardtop, engine variants, diesel particulate filter equipment and model-year updates can affect protection. The 207 CC also has roof-specific electrical equipment not established by a standard hatchback table.
Peugeot 207 fuse box FAQ
Where is the cigarette lighter fuse?
Cabin F9, rated 30 A, in the documented 2006-2008 layout.
Where is the front windscreen wiper fuse?
Under-bonnet F12 (30 A). The rear wiper uses cabin F1 (15 A).
Is starter fuse F8 always 20 A?
No. Both 20 A and 25 A are documented for different wiring configurations, so inspect your own fuse specification.
Is position SH a replaceable fuse?
No. SH is a PARC configuration jumper.
Fuse information: Peugeot 207 owner’s documentation and 2006-2008 model configurations. Featured vehicle image: Arnaud 25, Wikimedia Commons, public domain.
