Subaru Impreza (2013) – fuses diagram
Subaru Impreza (2013) – fuse box diagram
Year of production: 2013

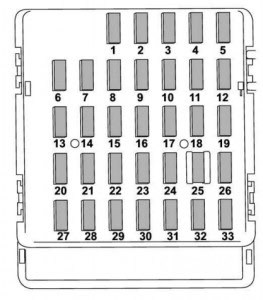

Fuse panel located in the passenger compartment
artment
| Fuse | Ampere current [A]. | Circuit |
| 1 | 20 | Trailer hitch connector |
| 2) | – | – |
| 3) | 15 | Locking the door |
| 4 | 10 | Front wiper defroster relay |
| 5 | 10 | Combination counter, clock |
| 6 | 7,5 | Remote controlled rear view mirrors, seat heater relay |
| 7 | 15 | Universal meter, integrated unit |
| 8 | 15 | Stop light |
| 9 | 15 | Front wiper defroster |
| 10 | 7,5 | Power supply (battery) |
| 11 | 7,5 | Rotate the signaling unit |
| 12 | 15 | Transmission control unit, engine control unit, integrated unit |
| 13 | 20 | Accessory power socket (center console), AC110V (if installed) |
| 14 | 15 | Position light, taillight, combination taillight |
| 15 | 10 | Luggage lighting, clock |
| 16 | 7,5 | Lighting |
| 17 | 15 | Seat heaters |
| 18 | 10 | Spare light |
| 19 | 7,5 | Spare |
| 20 | 10 | Accessory power socket (instrument cluster) |
| 21 | 7,5 | Starter relay |
| 22 | 15 | Air conditioning, rear window defogger relay coil |
| 23 | – | – |
| 24 | 15 | Audio device, clock |
| 25 | 15 | SRS airbag system |
| 26 | 7,5 | Windshield lifter relay, main radiator fan relay |
| 27 | 15 | Fan blowers |
| 28 | 15 | Fan blowers |
| 29 | 15 | Fog lights |
| 30 | – | – |
| 31 | 7,5 | Automatic air conditioning unit, integrated unit |
| 32 | 7,5 | Clutch switch, steering lock control unit |
| 33 | 7,5 | Vehicle dynamics control unit |

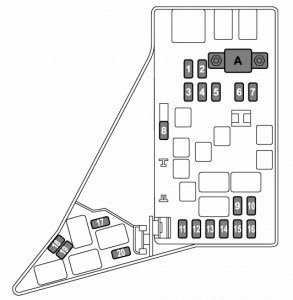

Fuse panel located in the engine compartment
| Fuse | Ampere current [A] | Consumer |
| 1 | 30 | ABS unit, vehicle dynamics control unit |
| 2) | 25 | Main fan (cooling fan) |
| 3) | 25 | Auxiliary fan (cooling fan) |
| 4 | – | – |
| 5 | – | – |
| 6 | 30 | Headlamp (low beam) |
| 7 | 15 | Headlamp (high beam) |
| 8 | 20 | Create a backup |
| 9 | 15 | Corner |
| 10 | 25 | Rear window defogger, mirror heating |
| 11 | 15 | Fuel pump |
| 12 | 20 | Automatic transmission control unit |
| 13 | 7,5 | Engine control unit |
| 14 | 15 | Direction blinker and warning blinker |
| 15 | 15 | Tail and lighting relay |
| 16 | 7,5 | Alternator |
| 17 | – | – |
| 18 | – | – |
| 19 | 15 | Headlamp (low beam – right) |
| 19 | 15 | Headlamp (low beam – left hand) |
