Mercury Sable 2008-2009 was the final generation of the large Mercury sedan carrying the Sable name. It replaced the Mercury Montego 2005-2007 for model year 2008, in parallel with Ford renaming the Five Hundred as the Taurus.
Electrically, the 2008 and 2009 cars are closely related. The tables below retain the complete passenger-compartment panel and under-hood power distribution box, including unused positions, diodes and relays.
The closely related Ford Taurus 2008-2009 uses a very similar architecture, but model-specific assignments should still be checked against the Sable table.
Fuse-box locations
Passenger compartment: below the dashboard to the left of the steering wheel. Engine compartment: the power distribution box contains high-current fuses and relays for the PCM, starter, ABS/AdvanceTrac, fuel pump, cooling fan, blower and power outlets.

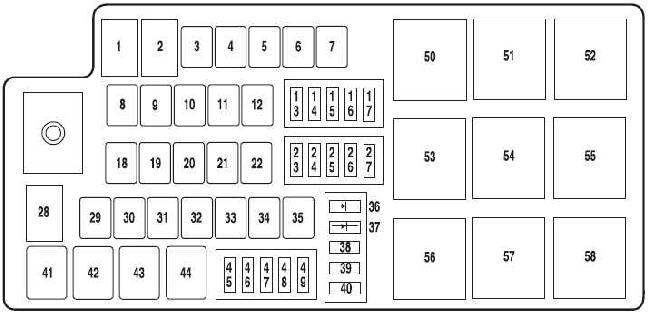

Engine-compartment power distribution box
| Position | Rating [A] | Protected component / function |
|---|---|---|
| 1 | 80 | Smart Power Distribution Junction Box supply |
| 2 | 80 | Smart Power Distribution Junction Box supply |
| 3 | 30 | Front wipers |
| 4 | – | Not used |
| 5 | 20 | Spare / not used |
| 6 | – | Not used |
| 7 | 50 | Cooling fan |
| 8 | – | Not used |
| 9 | 40 | ABS / AdvanceTrac pump |
| 10 | 30 | Starter |
| 11 | 50 | Powertrain Control Module relay |
| 12 | 20 | ABS / AdvanceTrac valves |
| 13 | 20 | Dashboard power outlet |
| 14 | 20 | Second-row power outlet |
| 15 | 20 | Spare / not used |
| 16 | 20 | Console power outlet |
| 17 | 10 | Alternator |
| 18 | – | Not used |
| 19 | – | Not used |
| 20 | 40 | Heated rear window |
| 21 | 30 | Passenger power seat |
| 22 | 20 | Heated-seat module |
| 23 | 10 | PCM keep-alive power, EVAP canister vent valve |
| 24 | 10 | A/C clutch relay |
| 25 | 25 | Spare / not used |
| 26 | 20 | Reversing-lamp relay |
| 27 | 15 | Fuel-pump circuit – fuel-pump driver module and fuel pump |
| 28 | – | Not used |
| 29 | 30 | Spare / not used |
| 30 | – | Not used |
| 31 | 30 | 2008: compass, auto-dimming rear-view mirror |
| 32 | 30 | 2008: driver power seat and memory module |
| 33 | 20 | Ignition switch – SJB supply |
| 34 | – | Not used |
| 35 | 40 | Front climate-control blower motor |
| 38 | 10 | IVD stability system / yaw-rate sensor |
| 39 | 10 | Fuel-pump circuit diode, PCM |
| 40 | – | Not used |
| 45 | 10 | Speed-control deactivation switch, MAF, VPWR2 |
| 46 | 10 | A/C clutch relay, VPWR3 |
| 47 | 15 | PCM VPWR1 |
| 48 | 15 | PCM VPWR4 |
| 49 | 15 | Heated mirrors |
| Diode | ||
| 36 | One-Touch Start system | |
| 37 | Fuel pump | |
| Relay | ||
| 41 | A/C clutch | |
| 42 | Fuel pump | |
| 43 | Reversing lamps | |
| 44 | Not used | |
| 50 | PCM relay | |
| 51 | Not used | |
| 52 | Not used | |
| 53 | Heated rear window | |
| 54 | Blower motor | |
| 55 | Starter | |
| 56 | Not used | |
| 57 | Front wiper | |
| 58 | Not used | |

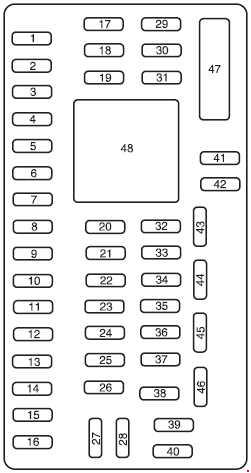

Passenger-compartment fuse panel
| Position | Rating [A] | Protected component / function |
|---|---|---|
| 1 | 30 | Driver one-touch window motor |
| 2 | 15 | Brake-pedal switch, center high-mounted stop lamp |
| 3 | 15 | SDARS, Bluetooth, rear entertainment / rear-seat controls |
| 4 | 30 | Spare / not used |
| 5 | 10 | SPDJB logic supply |
| 6 | 20 | Turn signals |
| 7 | 10 | Left low beam |
| 8 | 10 | Right low beam |
| 9 | 15 | Interior and luggage-compartment lighting |
| 10 | 15 | Illumination, puddle lamps |
| 11 | 10 | All-wheel drive |
| 12 | 7.5 | Seat/mirror memory switches and memory module |
| 13 | 5 | FEPS module |
| 14 | 10 | Analog clock |
| 15 | 10 | Climate-control system |
| 16 | 15 | Spare / not used |
| 17 | 20 | Power door locks and luggage-compartment lid release |
| 18 | 20 | Spare / not used |
| 19 | 25 | Moonroof |
| 20 | 15 | OBD-II diagnostic connector |
| 21 | 15 | Fog lamps |
| 22 | 15 | Parking lamps and license-plate lamps |
| 23 | 15 | High beams |
| 24 | 20 | Horn relay |
| 25 | 10 | Parking / interior lamps |
| 26 | 10 | Instrument cluster |
| 27 | 20 | Adjustable-pedal switch |
| 28 | 5 | Radio, radio start signal |
| 29 | 5 | Instrument cluster |
| 30 | 5 | Overdrive-cancel switch |
| 31 | 10 | Spare / not used |
| 32 | 10 | Driver power seat and memory module |
| 33 | 10 | Spare / not used |
| 34 | 5 | AWD module |
| 35 | 10 | Steering-angle sensor, FEPS, rear parking aid, heated-seat modules |
| 36 | 5 | PATS immobilizer module |
| 37 | 10 | Climate-control system |
| 38 | 20 | Subwoofer – Audiophile system |
| 39 | 20 | Radio |
| 40 | 20 | Spare / not used |
| 41 | 15 | Moonroof, front lock switches, radio, electrochromic mirror with compass |
| 42 | 10 | Spare / not used |
| 43 | 10 | Spare / not used |
| 44 | 10 | Spare / not used |
| 45 | 5 | Relay coils: PDB, auxiliary climate control, front/rear wipers, front blower |
| 46 | 7.5 | Occupant Classification System, passenger-airbag deactivation indicator |
| 47 | 30 | Circuit breaker – power windows |
| Relay | ||
| 48 | Delayed accessory power | |
Commonly checked fuses
- OBD-II: cabin position 20 – 15 A.
- Fuel pump: under-hood position 27 – 15 A, with relay 42.
- ABS / AdvanceTrac: under-hood position 9 – 40 A for the pump and 12 – 20 A for the valves.
- 12 V outlets: positions 13, 14 and 16 – 20 A each for the dashboard, second row and console.
- Radio: cabin position 39 – 20 A.
- AWD: cabin position 11 – 10 A and position 34 – 5 A for the AWD module.
FAQ – Mercury Sable 2008-2009 fuses
Where is the OBD-II fuse?
Cabin position 20 – 15 A.
Where is the fuel-pump fuse?
Under-hood position 27 – 15 A. The fuel-pump relay is position 42 and the pump diode is position 37.
Which fuses protect the power outlets?
Positions 13, 14 and 16 under the hood protect the dashboard, second-row and console outlets respectively.
Can I use the Ford Taurus 2008-2009 table?
The cars are closely related, but equipment and individual assignments can differ, so use the Mercury-specific table for diagnosis.
