Ford Cougar 1999-2002 has a main passenger-compartment fuse panel and an engine-compartment power-distribution box. During the 1999 model year the under-hood box changed, so two different 1999 layouts exist.
The Cougar is closely related to the Mercury Cougar 1999-2002. For a 1999 car, identify the physical under-hood box before selecting the table.

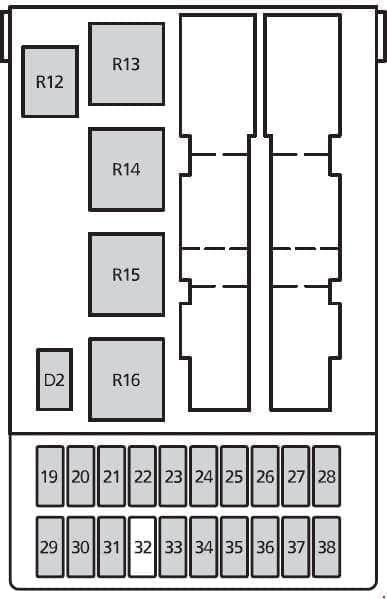

Passenger-compartment fuse panel
| Position | Rating [A] | Protected component / function |
|---|---|---|
| 19 | 7.5 | Heated exterior mirrors. |
| 20 | 10 | Front and rear wipers. |
| 21 | 40 | Power windows and moonroof. |
| 22 | 7.5 | ABS / TCS. |
| 23 | 15 | Turn signals, reversing lamps and speed control; depending on year also shift interlock, A/C clutch, blower and bulb-out monitoring. |
| 24 | 15 | Stop lamps and speed control. |
| 25 | 20 | Central locking, alarm and double locking. |
| 26 | 7.5 | Low- and high-beam control. |
| 27 | 15 | Cigarette lighter / power outlet. |
| 28 | 30 | Power seats. |
| 29 | 30 | Heated rear window. |
| 30 | 7.5 | Engine control, immobilizer / vehicle security and instrument cluster. |
| 31 | 7.5 | Illumination dimmer, license-plate and glove-box lamps; 2001-2002 also Belt Minder module. |
| 32 | – | Not used. |
| 33 | 7.5 | Left parking / exterior-light circuit. |
| 34 | 7.5 | Power mirrors, clock and interior lamps. |
| 35 | 7.5 | Right parking / exterior-light circuit. |
| 36 | 15 | Radio and audio system. |
| 37 | 30 | Heater / A/C blower. |
| 38 | 7.5 | Airbag system. |
Passenger-compartment relays
| Position | Function |
|---|---|
| R12 | Interior lighting. |
| R13 | Heated rear window. |
| R14 | Blower motor. |
| R15 | Front wiper. |
| R16 | Ignition. |
| D2 | Protection diode / circuit-protection element. |
Engine-compartment fuse box – early 1999
| Position | Rating [A] | Protected component / function |
|---|---|---|
| 1 | 80 | Main vehicle electrical-system supply. |
| 2 | 60 | Engine cooling fan. |
| 3 | 60 | ABS / TCS and blower circuit. |
| 4 | 20 | Engine control, ignition; where equipped also Daytime Running Lamps. |
| 5 | 30 | Left half of heated windshield – if equipped. |
| 6 | 30 | Right half of heated windshield – if equipped. |
| 7 | 10 | Alternator / battery-voltage monitoring. |
| 8 | 20 | Market-dependent equipment circuit; North American documentation lists front fog lamps. |
| 9 | 20 | Engine control. |
| 10 | 20 | Ignition switch, starting circuit and main light switch. |
| 11 | 3 | Engine control / immobilizer. |
| 12 | 20 | Hazard lamps and horn. |
| 13 | 20 | HEGO sensors / engine control. |
| 14 | 15 | Engine control and fuel pump. |
| 15 | 7.5 | Right low beam. |
| 16 | 7.5 | Left low beam. |
| 17 | 7.5 | Right high beam. |
| 18 | 7.5 | Left high beam. |
Relays – early 1999
| Position | Function |
|---|---|
| R1 | Daytime Running Lamps – market dependent. |
| R2 | Engine cooling fan – high speed. |
| R3 | Air conditioning. |
| R4 | Heated-windshield control – equipped versions. |
| R5 | Engine cooling fan. |
| R6 | Starter. |
| R7 | Horn. |
| R8 | Fuel pump. |
| R9 | Low beams. |
| R10 | High beams. |
| R11 | PCM engine-control module. |
| D1 | Reverse-polarity protection. |

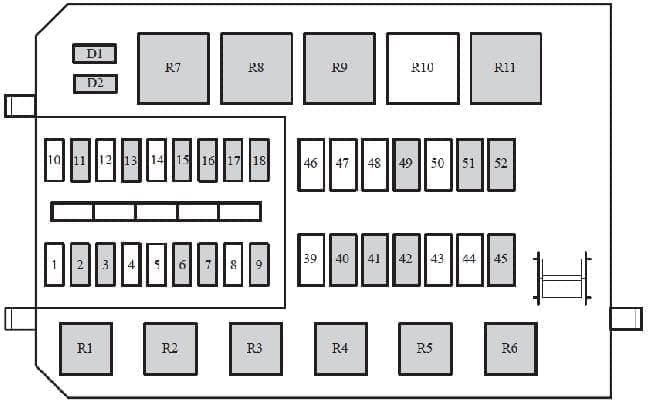

Engine-compartment fuse box – later 1999-2002
| Position | Rating [A] | Protected component / function |
|---|---|---|
| 1 | – | Not used. |
| 2 | 7.5 / 15 | Alternator – 7.5 A in 1999-2000, 15 A in 2001-2002. |
| 3 | 20 | Front fog lamps. |
| 4 | – | Not used. |
| 5 | – | Not used. |
| 6 | 3 | Engine control. |
| 7 | 20 | Hazard lamps, horn and multifunction switch. |
| 8 | – | Not used. |
| 9 | 15 | Fuel pump. |
| 10 | – | Not used. |
| 11 | 20 | Engine control and ignition in 1999-2000; depending on market also Daytime Running Lamps. |
| 12 | – | Not used. |
| 13 | 20 | HEGO sensors. |
| 14 | – | Not used. |
| 15 | 7.5 | Right low beam. |
| 16 | 7.5 | Left low beam. |
| 17 | 7.5 | Right high beam. |
| 18 | 7.5 | Left high beam; depending on version also instrument cluster and front fog-lamp control. |
| 39 | – | Not used. |
| 40 | 20 | Ignition; 2001-2002 also engine control; on some 1999-2000 versions starting circuit and main light switch. |
| 41 | 20 | Engine control. |
| 42 | 40 | Heater blower. |
| 43 | – | Not used. |
| 44 | – | Not used. |
| 45 | 60 | Main electrical feed / ignition relay. |
| 46 | – | Not used. |
| 47 | – | Not used. |
| 48 | – | Not used. |
| 49 | 60 | Engine cooling fan. |
| 50 | – | Not used. |
| 51 | 60 | ABS / TCS. |
| 52 | 60 | Timer module, interior lighting, heated rear window and fuse circuits 25, 27, 28, 34 and 36. |
Relays and diodes – later layout
| Position | Function |
|---|---|
| R1 | Fuel pump. |
| R2 | Engine control. |
| R3 | Air conditioning. |
| R4 | Low beams. |
| R5 | High beams. |
| R6 | Horn. |
| R7 | Starter. |
| R8 | Engine cooling fan – high speed. |
| R9 | Engine cooling fan. |
| R10 | Not used in the basic layout; fitment may depend on market/equipment. |
| R11 | Daytime Running Lamps – equipped versions. |
| D1 | 1999: reverse-polarity protection; 2000-2002: starter-circuit element. |
| D2 | Air conditioning. |
FAQ – Ford Cougar 1999-2002 fuses
Why are there two engine-compartment diagrams for 1999?
The power-distribution box changed during the 1999 model year. Early cars use the 1-18 layout; later cars add high-current positions 39-52.
Where is the cigarette-lighter fuse?
Passenger-compartment position 27 – 15 A.
